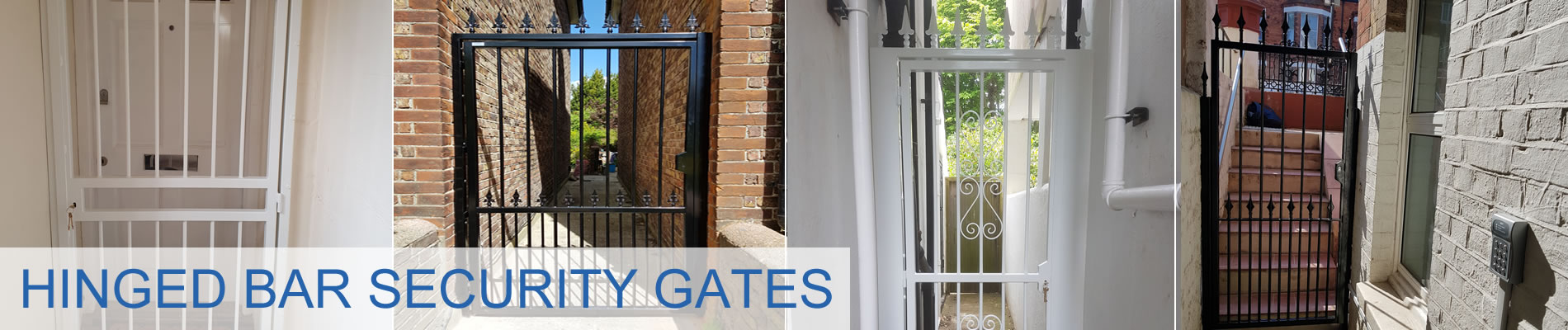

Hinged Bar Security Gates

Hinged Security Gates

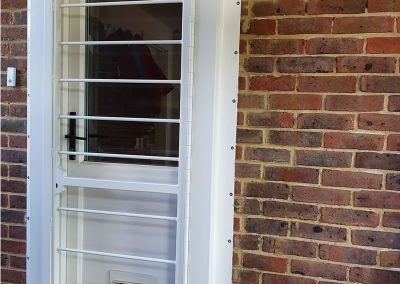

Our standard bar gates are generally constructed using either 16mm or 19mm solid round vertical bars spaced at 125mm centres welded within 40mm box section frames.

All our gates benefit from a full height anti thrust plate down the locking side to prevent jemmy attacks and are secured by a Chubb 3G114E insurance rated deadlock, operable from both sides with a key.

Scrolls and many other design features can be added to our gates during the manufacturing process for a more decorative finish, we are happy to discuss and help design your gate to any specification you provide.

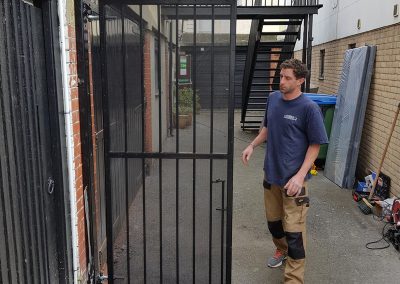

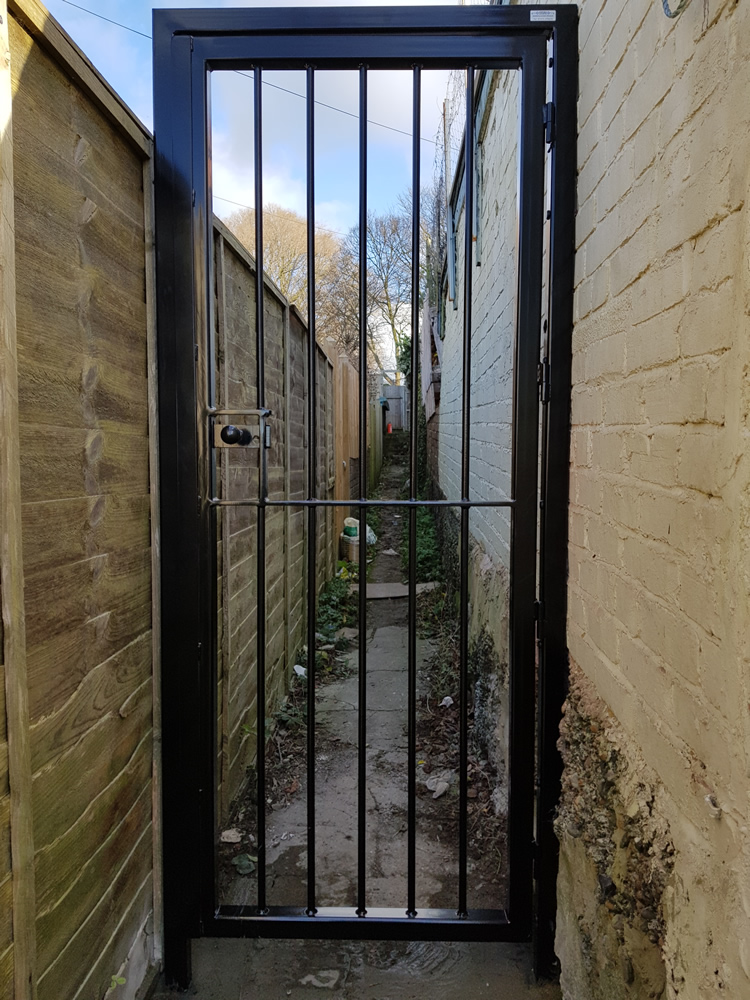

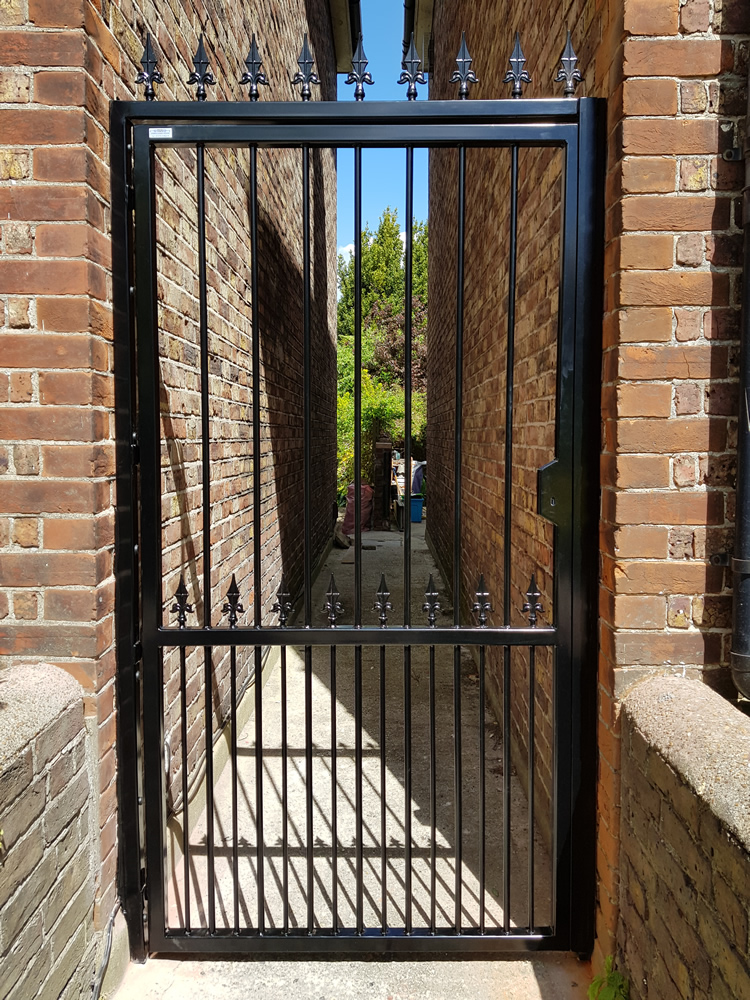

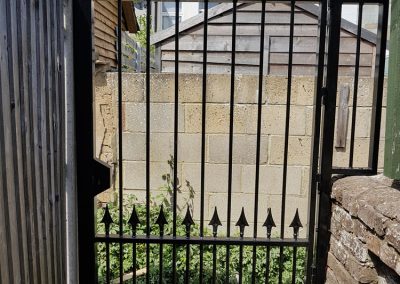

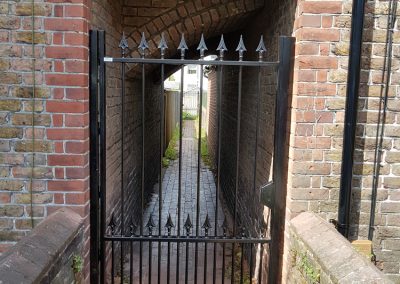

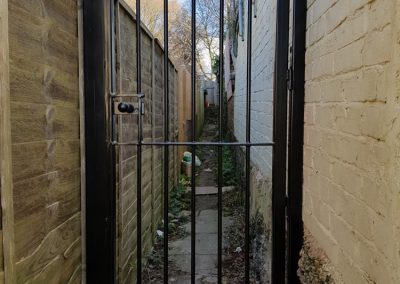

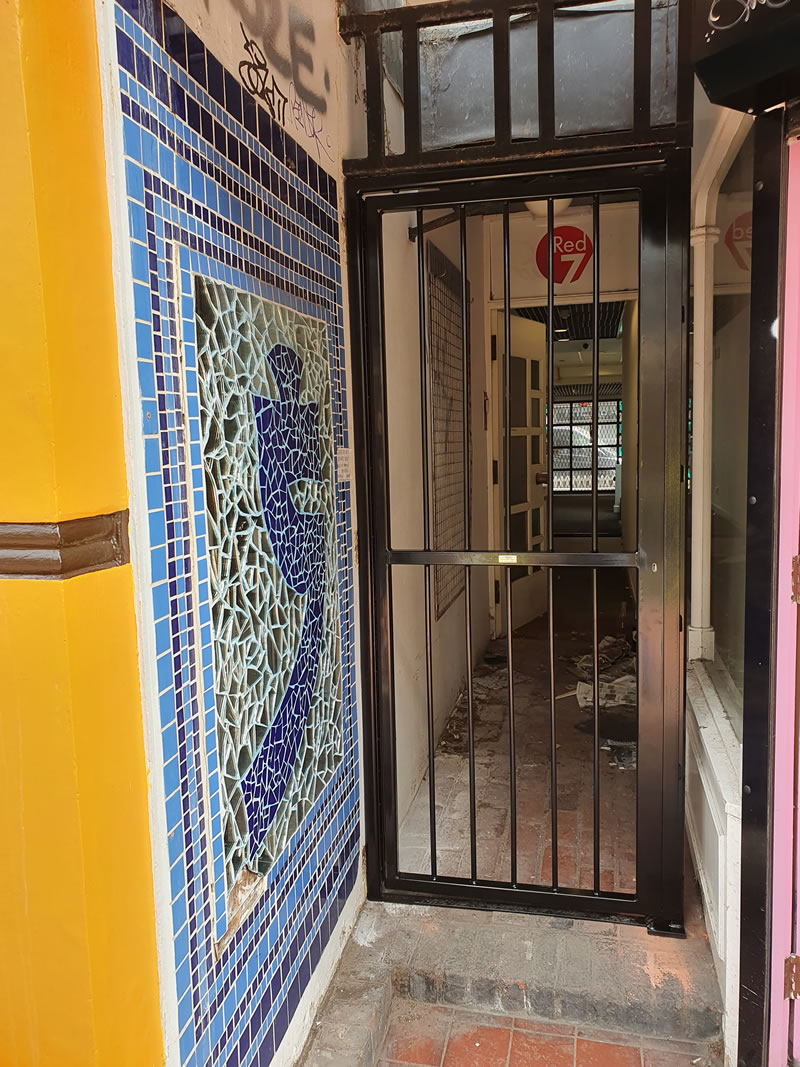

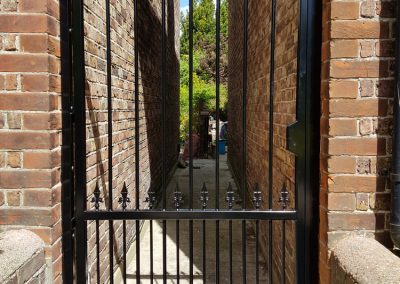

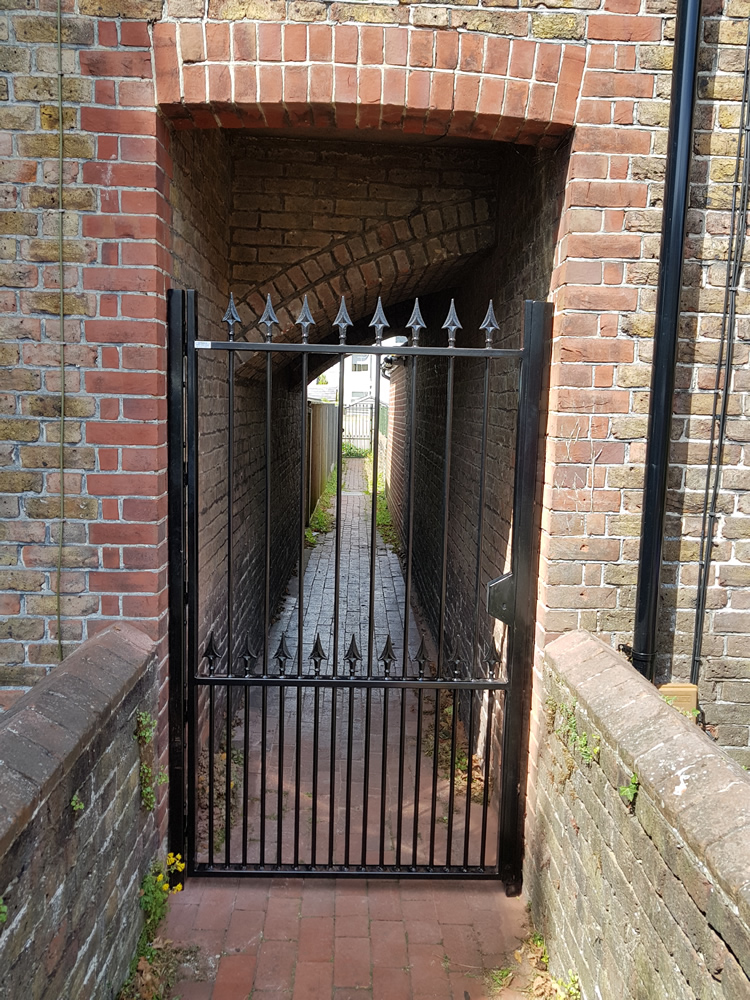

Alley Way security gate

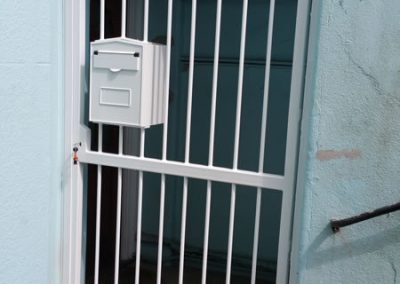

Cut outs can be made to accommodate door handles, letterboxes or in fact any special requirements, arrow heads are often used across the tops of gate frames to prevent climbing over.

The finish is etch primed and powder coated to either a standard colour or we are happy to match any existing RAL or BS colour provided, galvanizing is also available as an option prior to powder coating.

Because our security gates are all bespoke made, we are able to design and install our security gates to operate alongside existing or new door entry phone & electronic security systems.

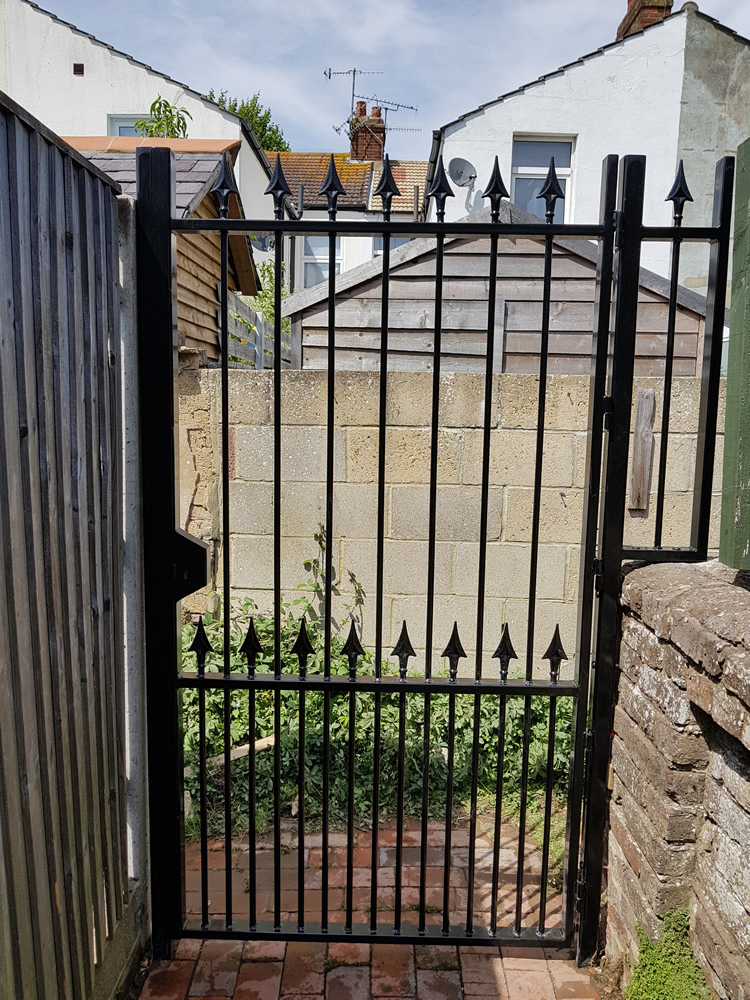

Alley Way security gate

With over 33 years experience installing security our highly knowledgeable staff are happy to offer free surveys, quotes and site meetings where your access control requirements can be discussed in detail.

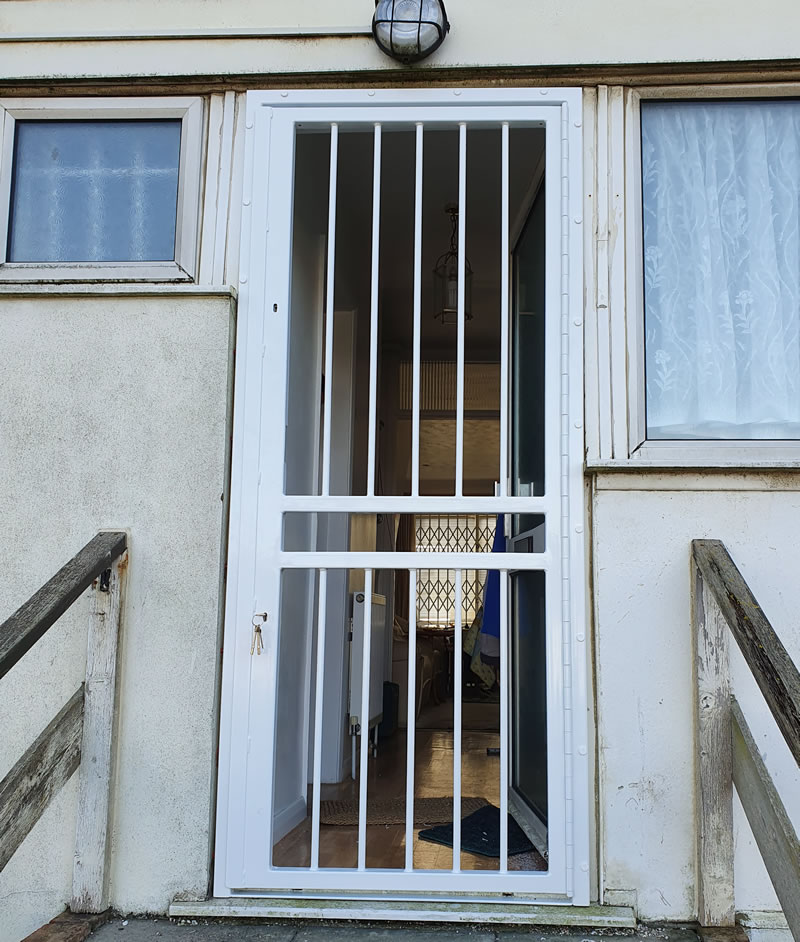

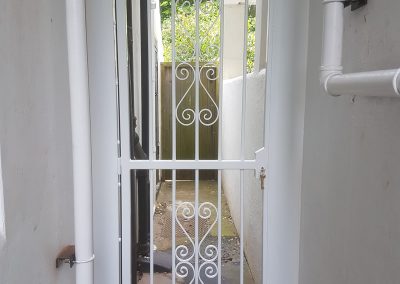

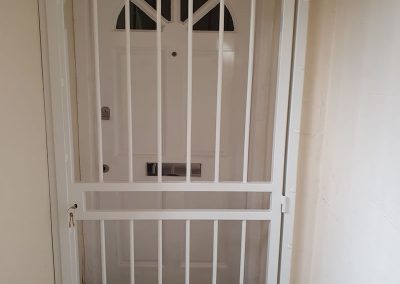

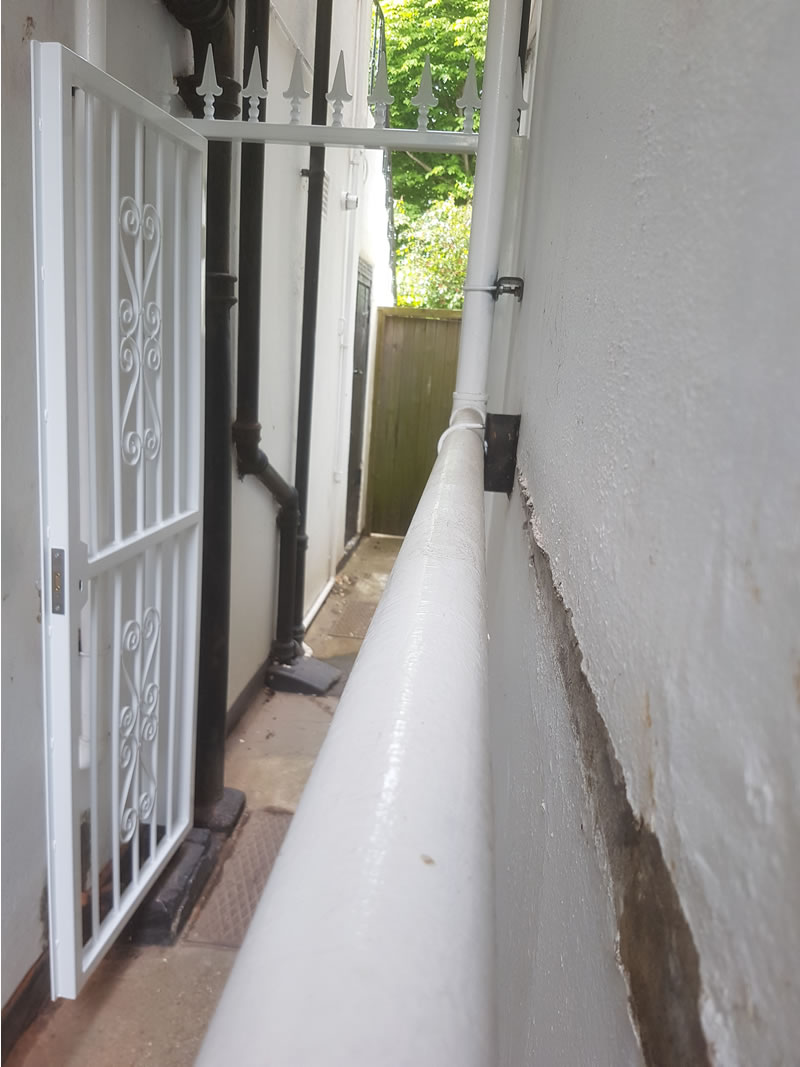

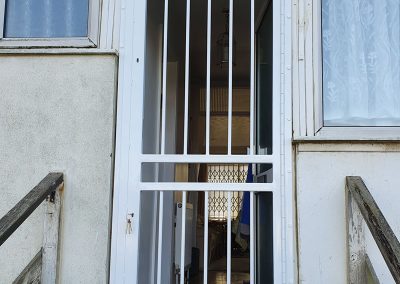

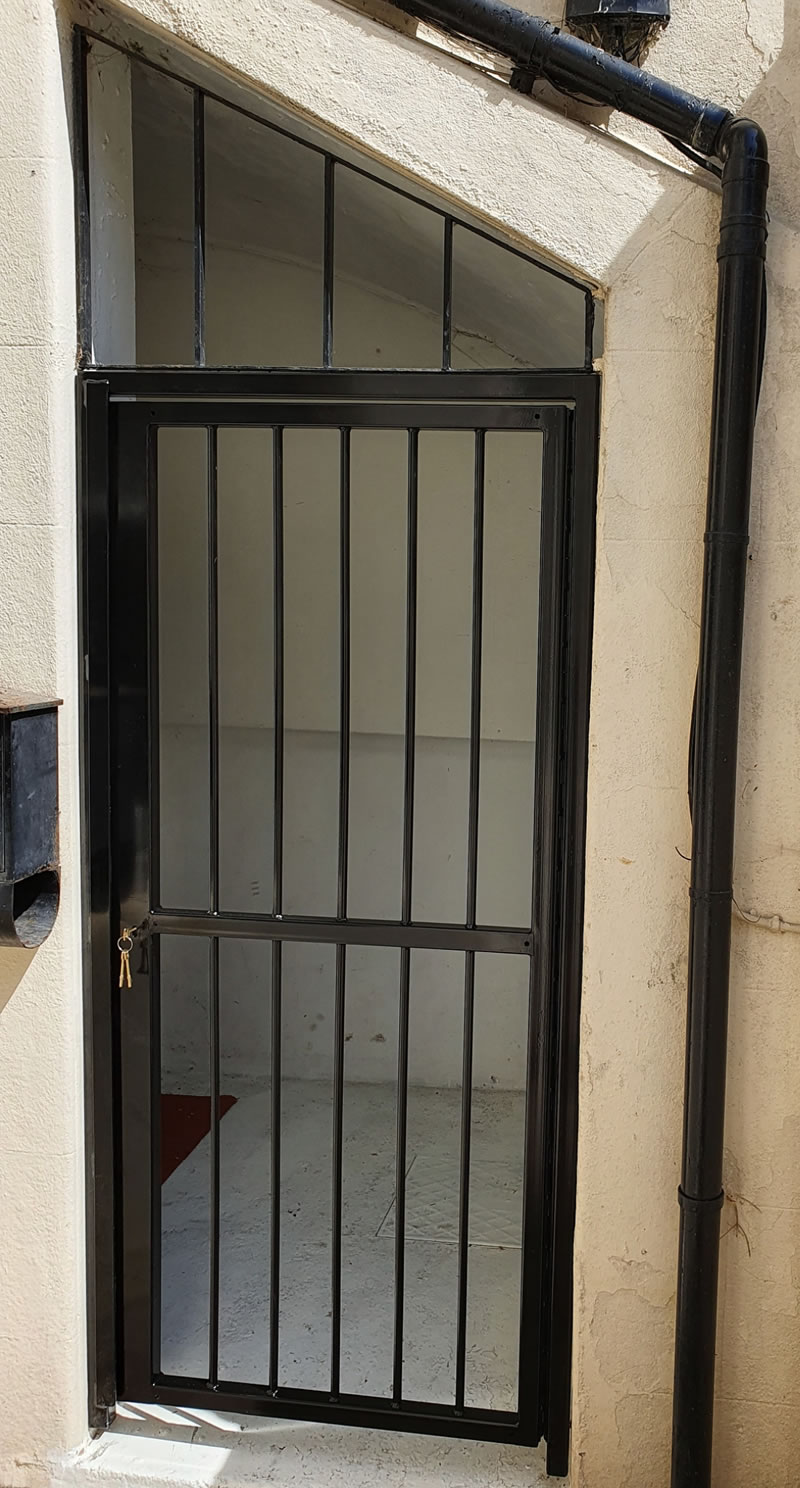

Security Gate

Gallery of our Installations

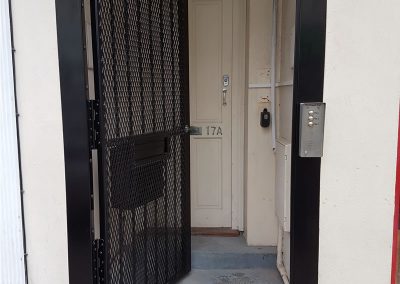

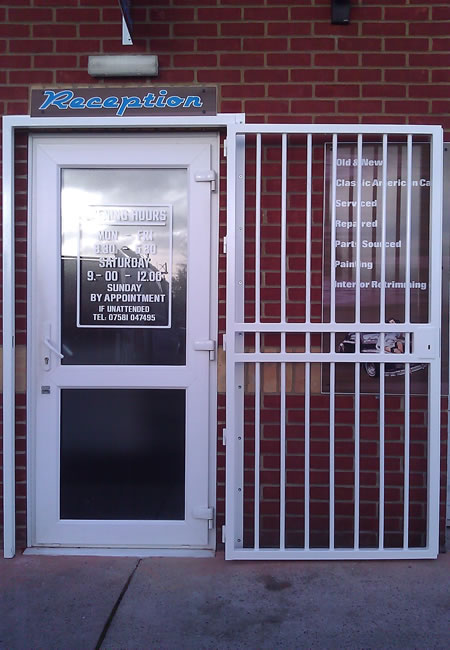

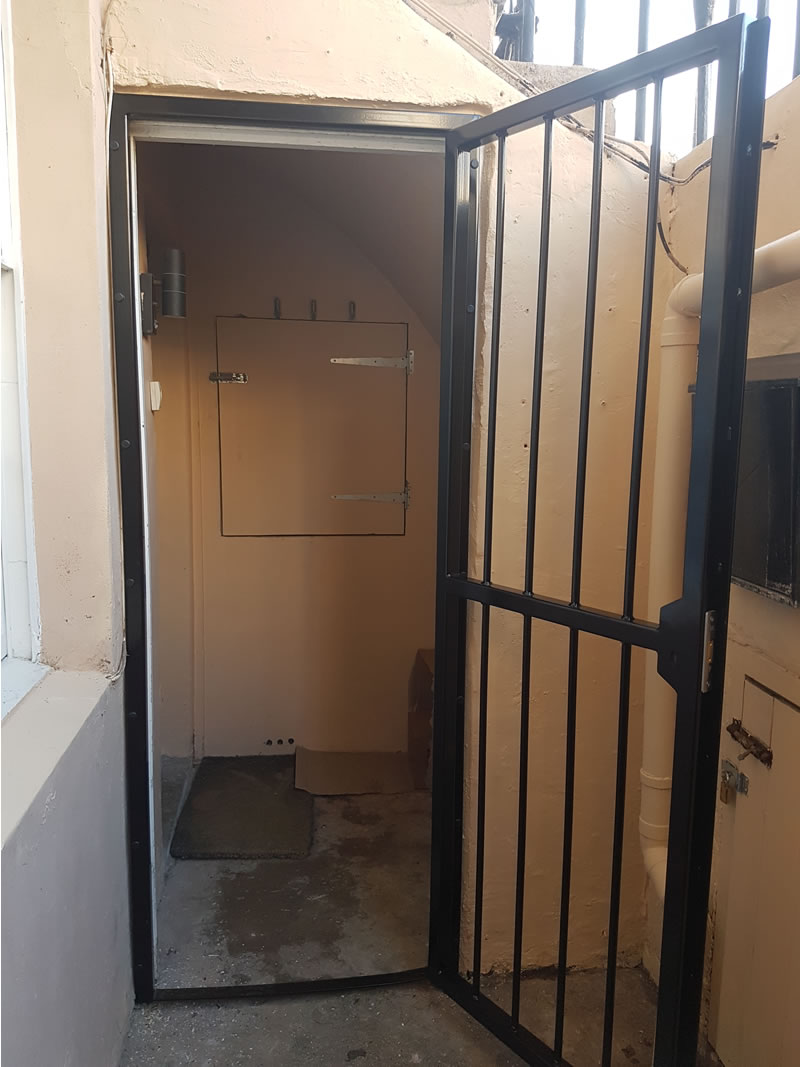

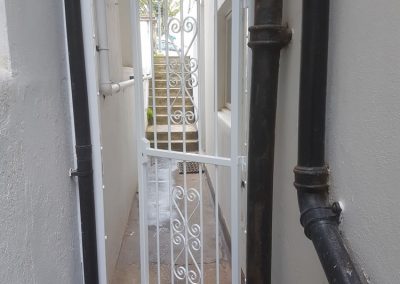

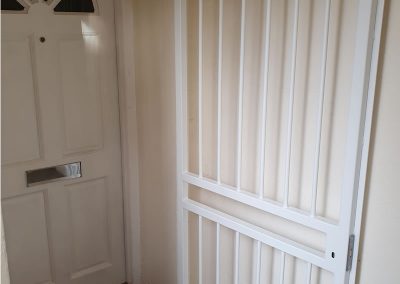

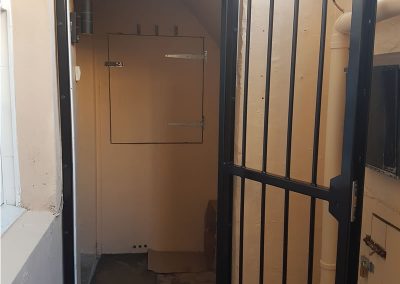

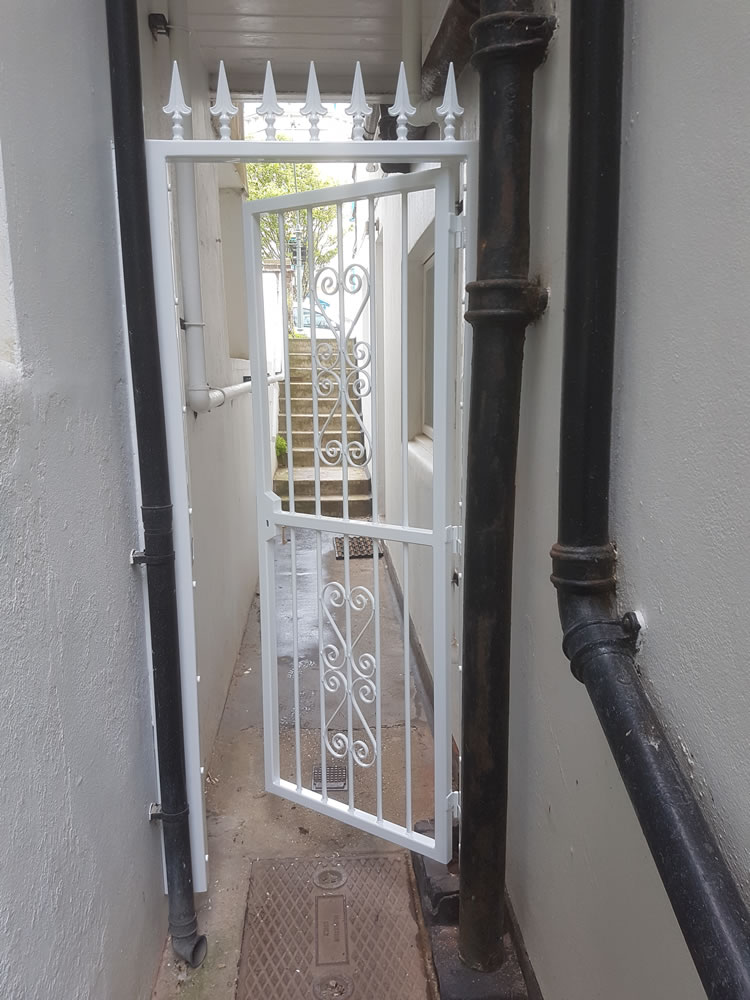

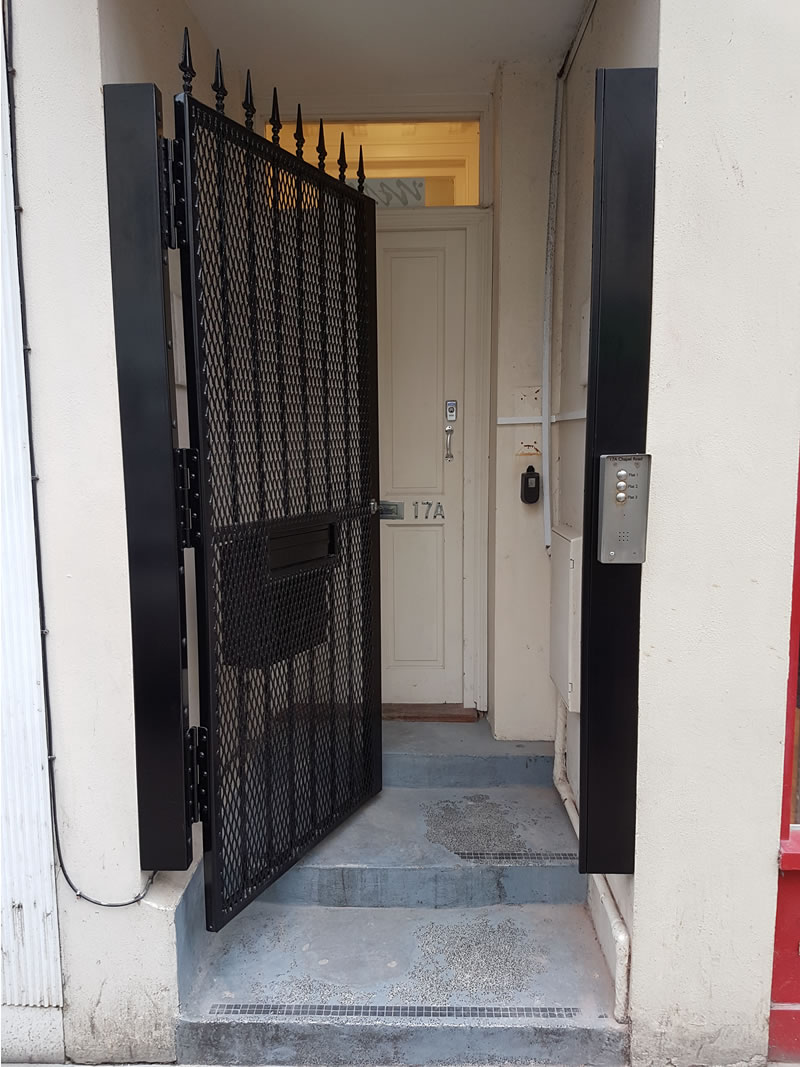

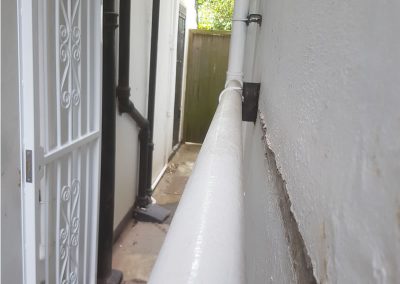

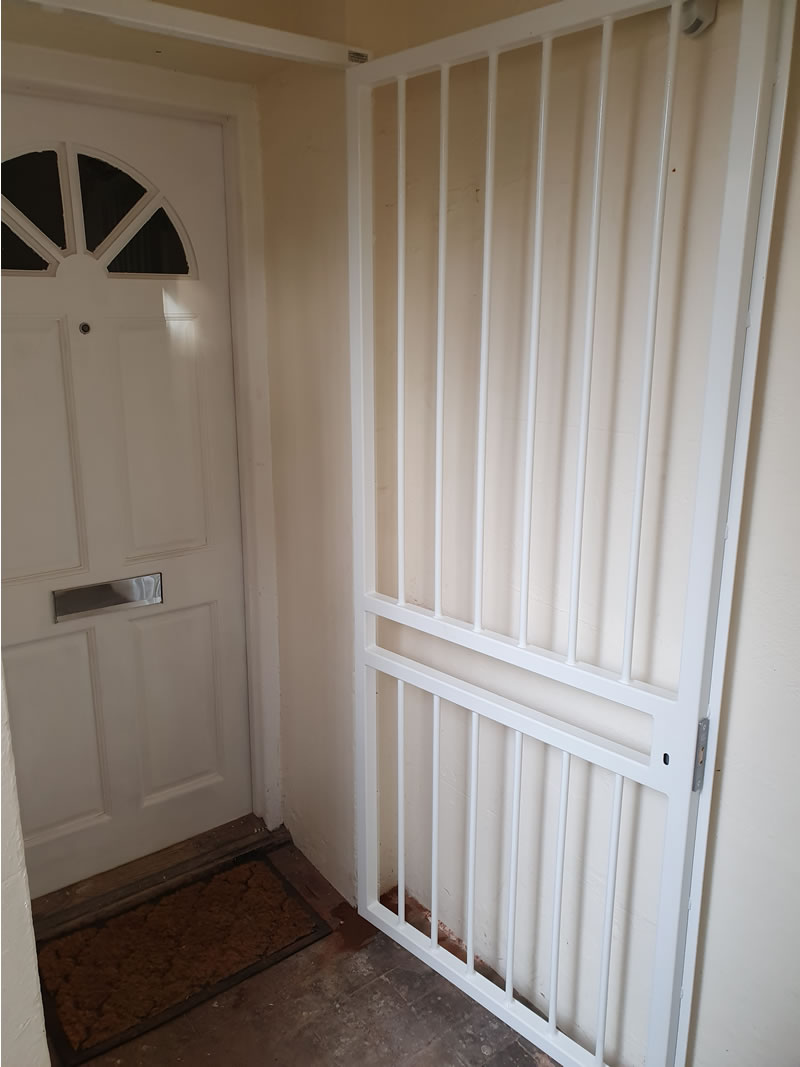

White Security Gate Open Example

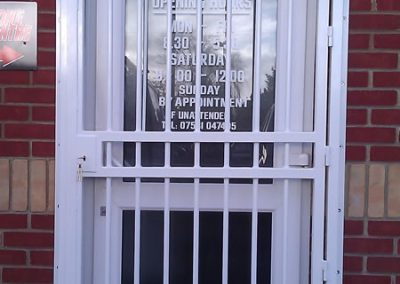

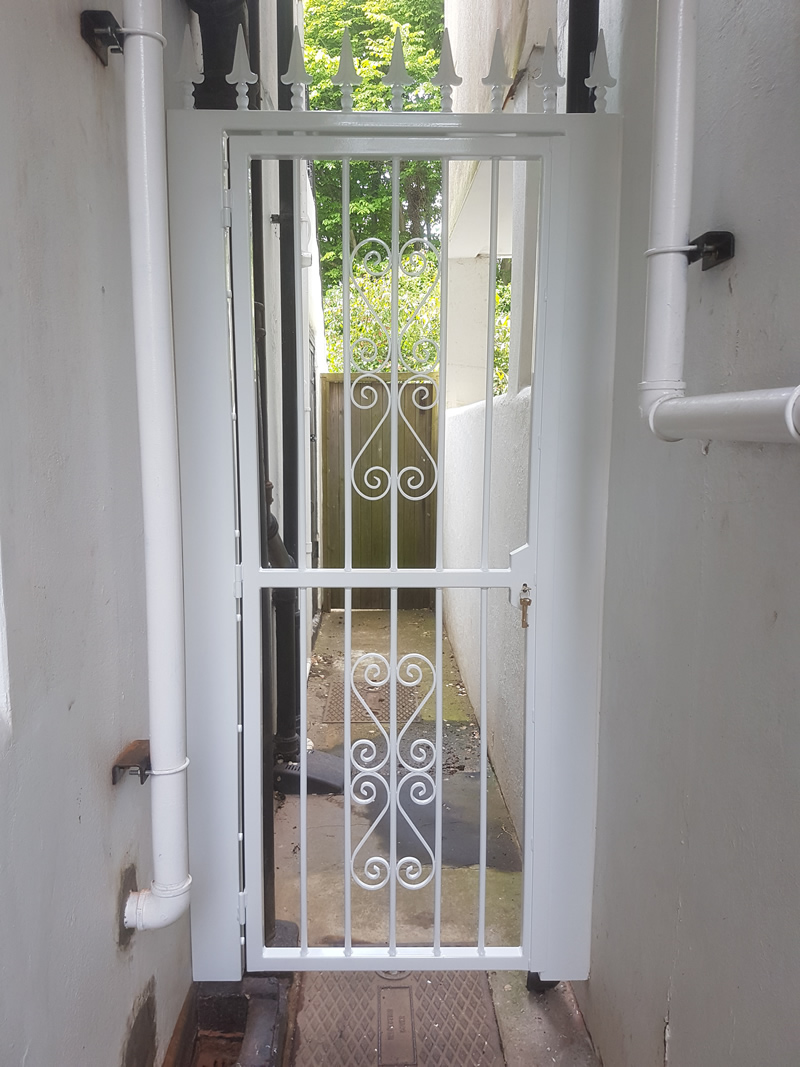

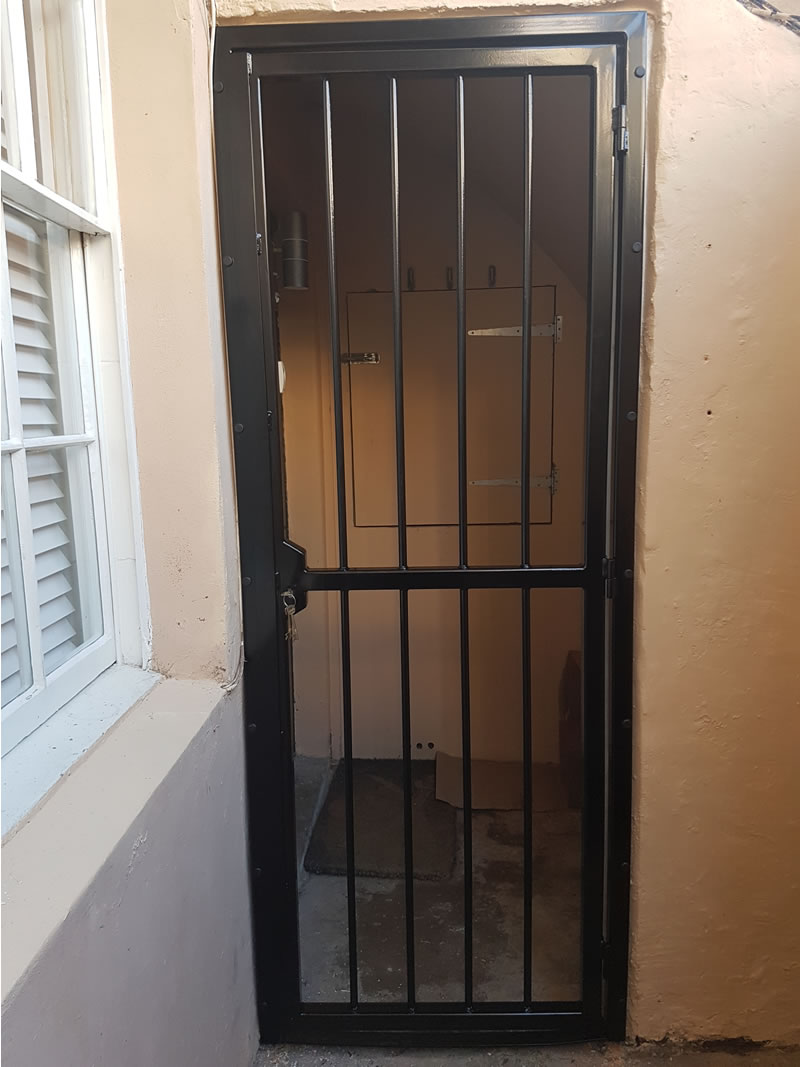

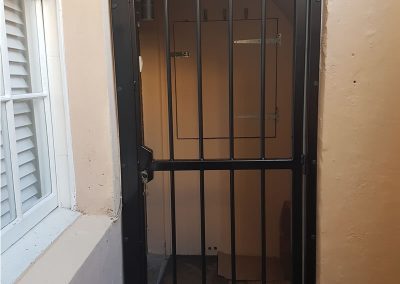

Security Gate

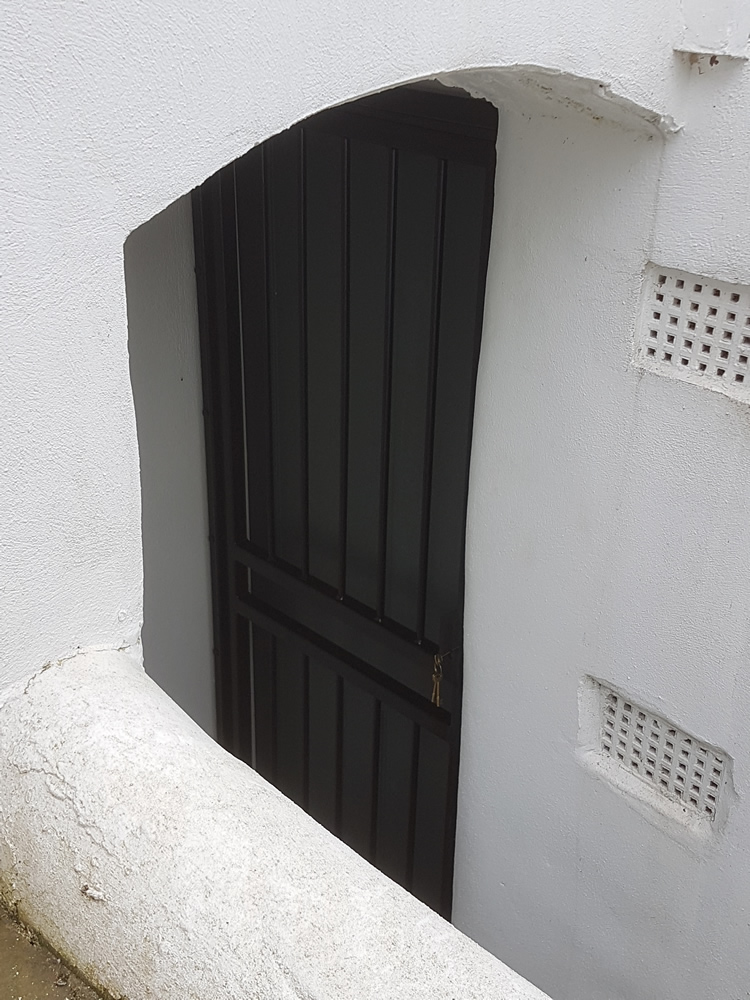

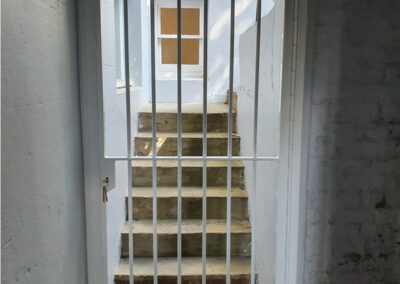

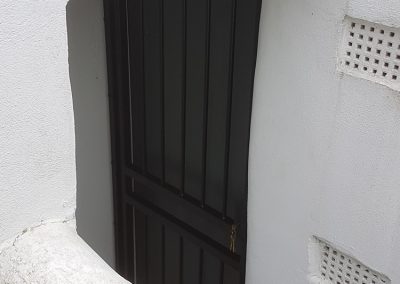

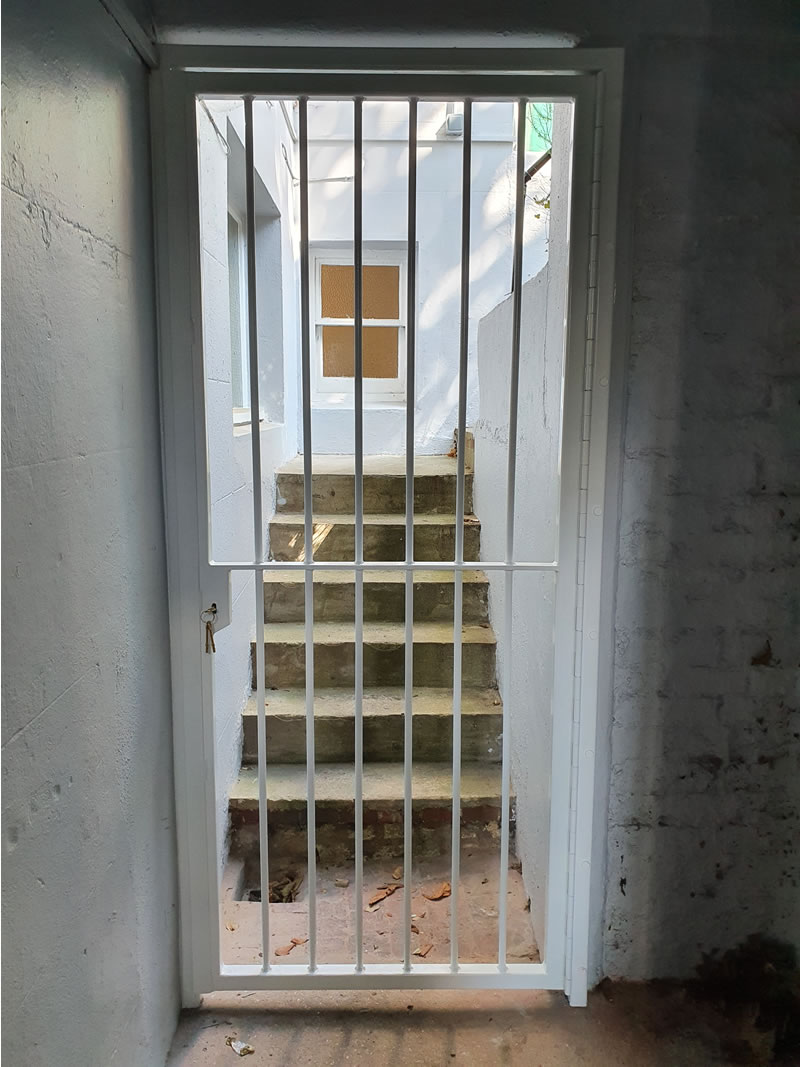

Basement Gate

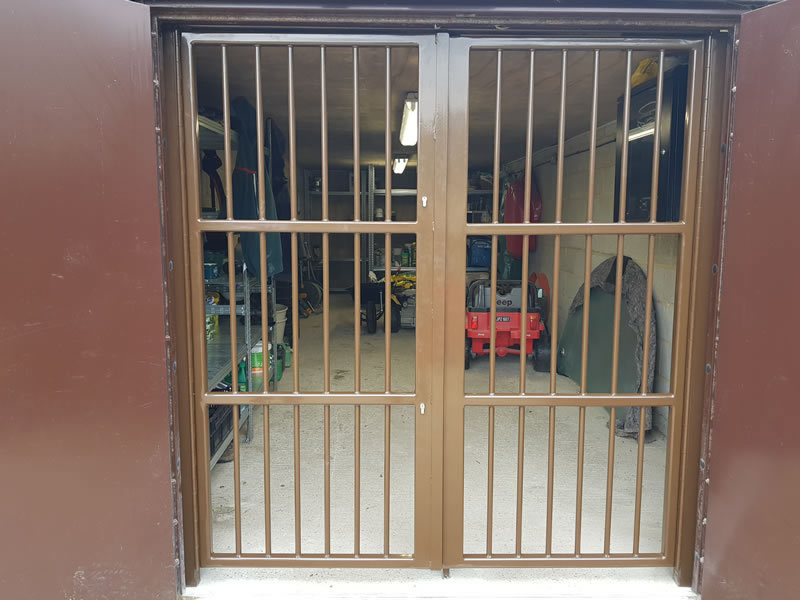

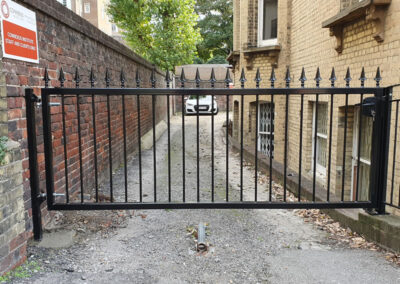

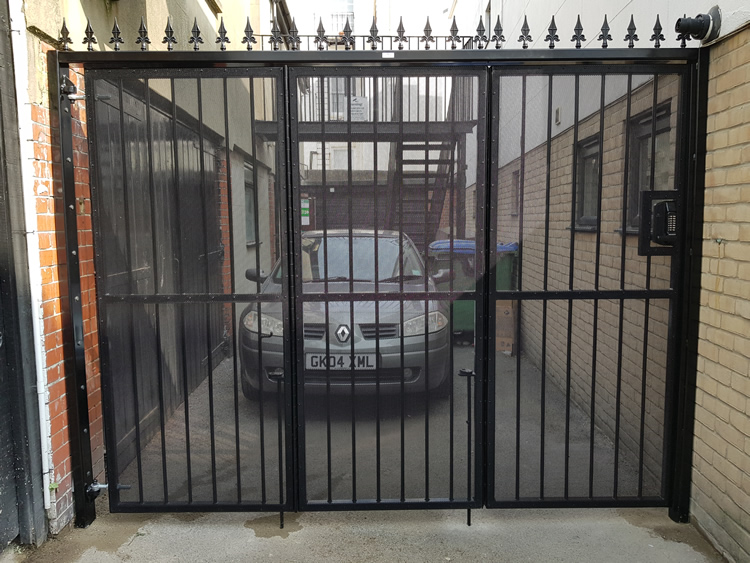

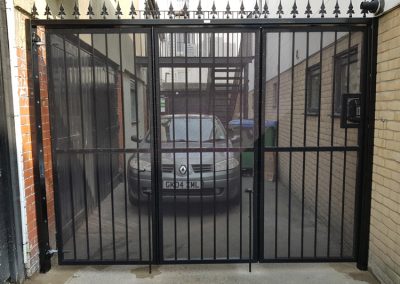

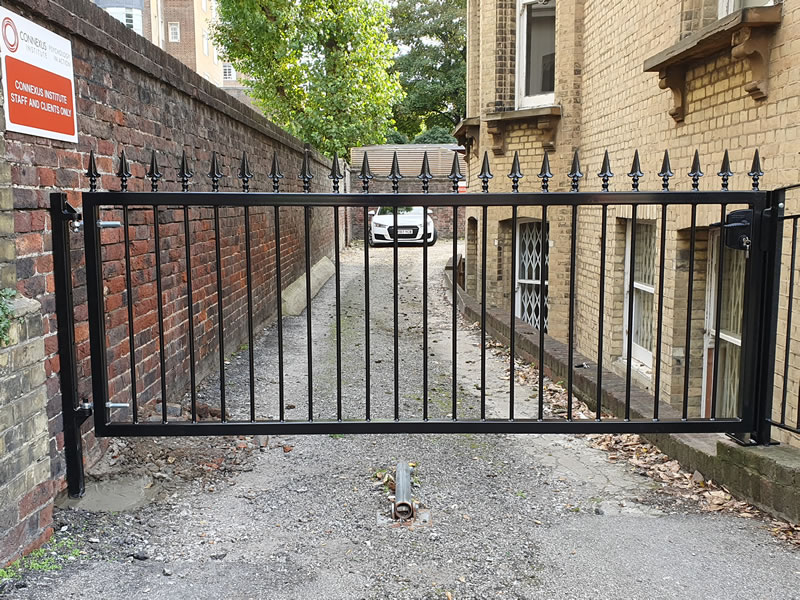

Drive Gate

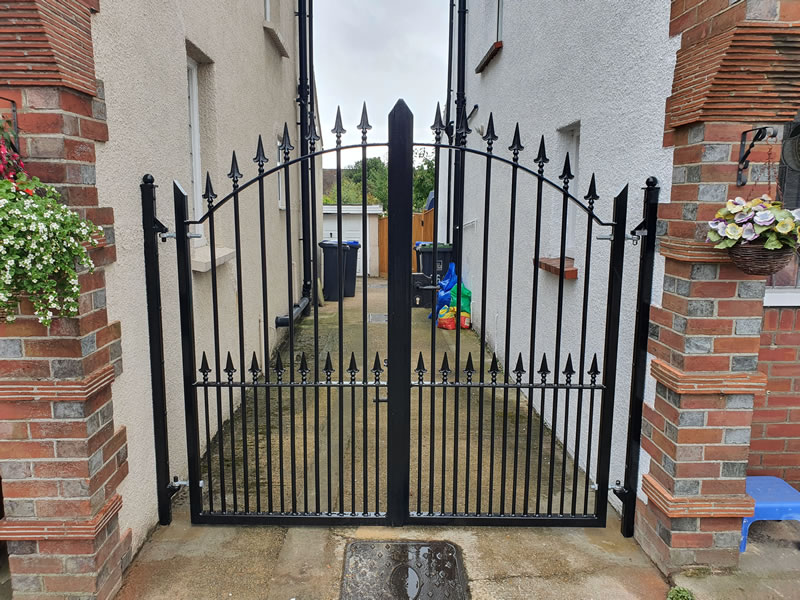

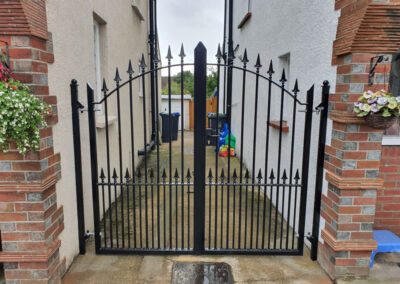

Driveway Gates

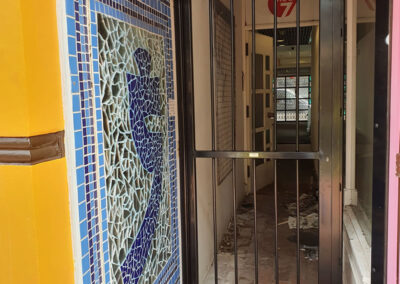

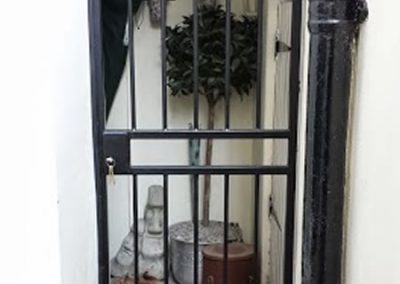

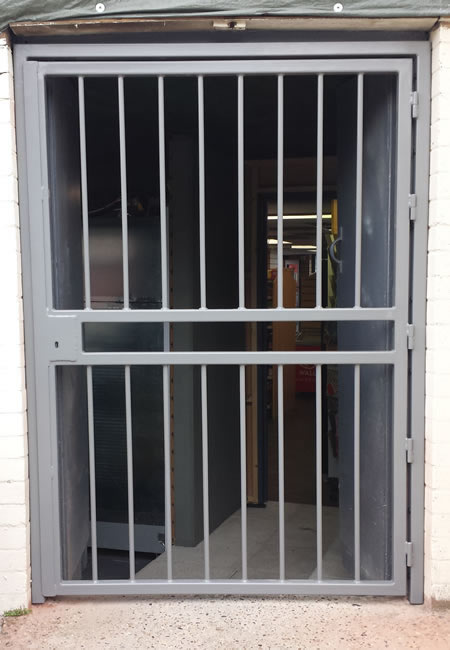

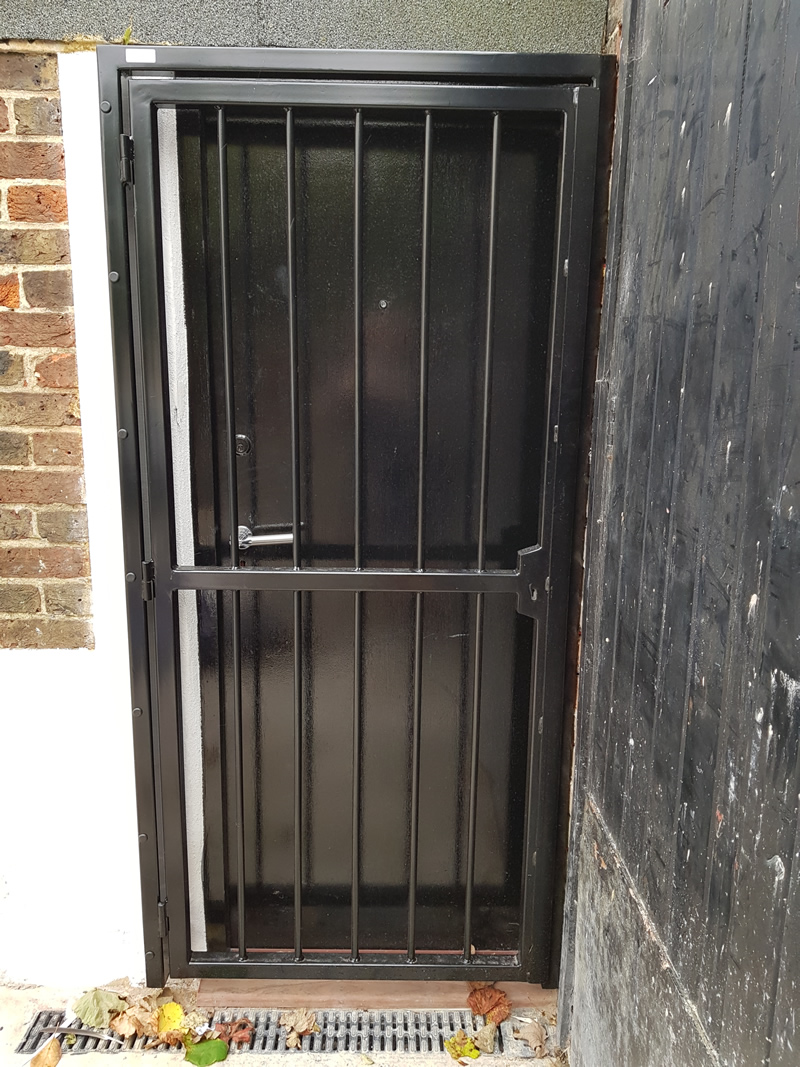

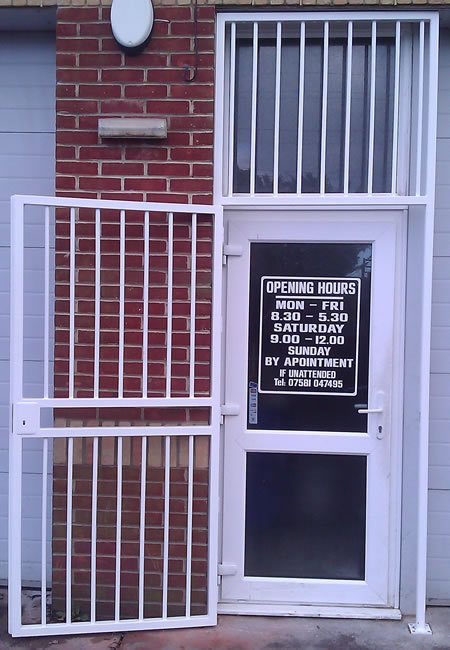

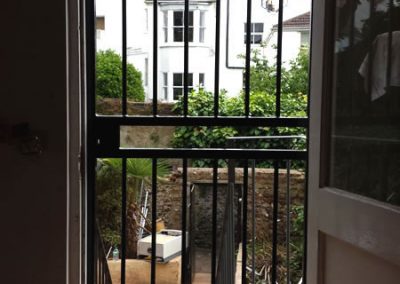

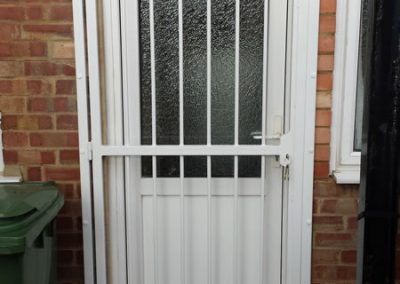

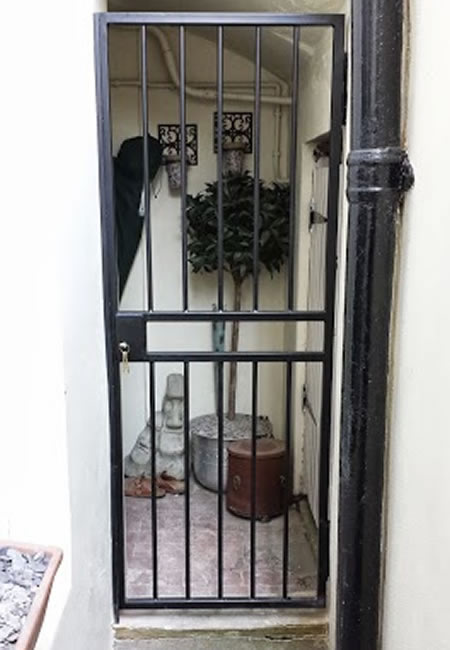

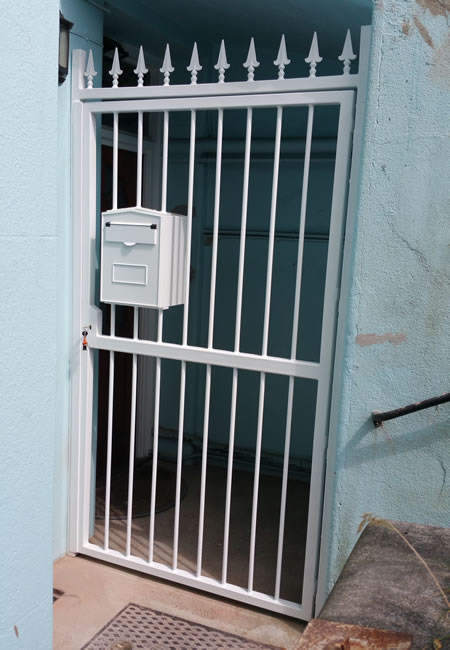

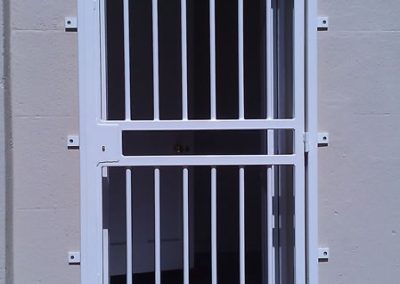

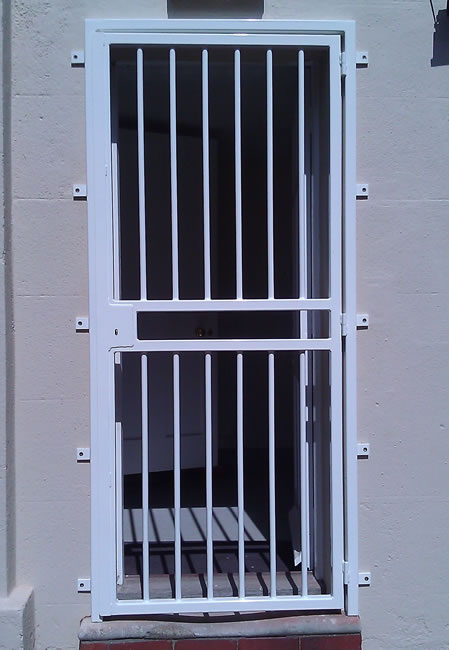

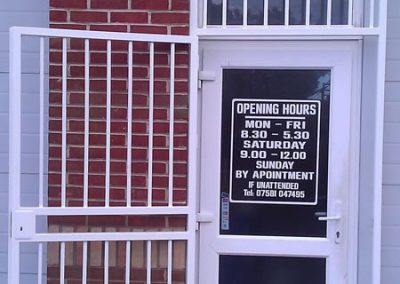

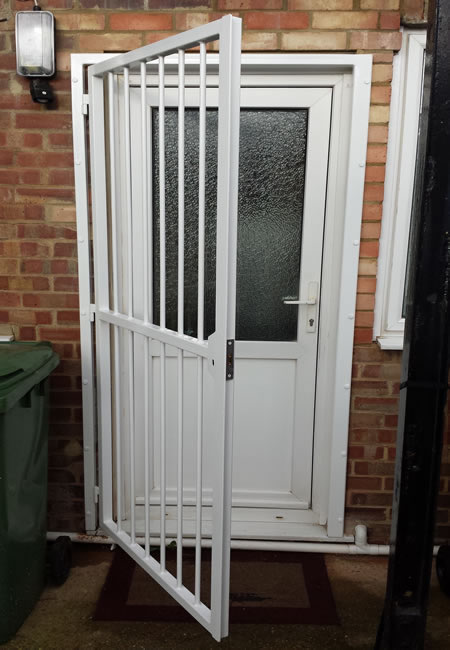

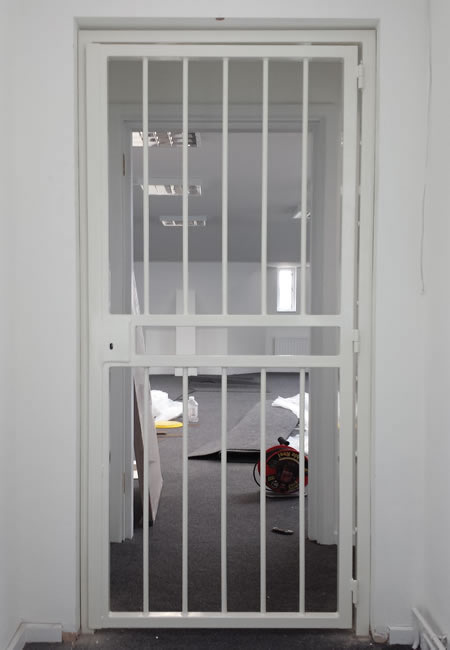

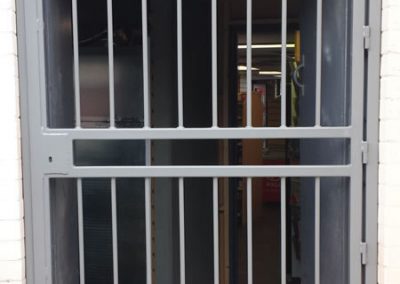

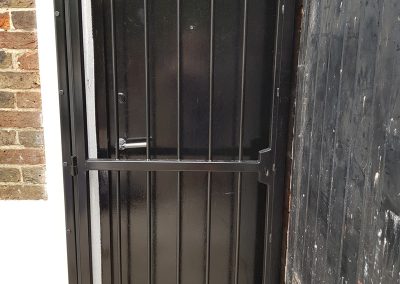

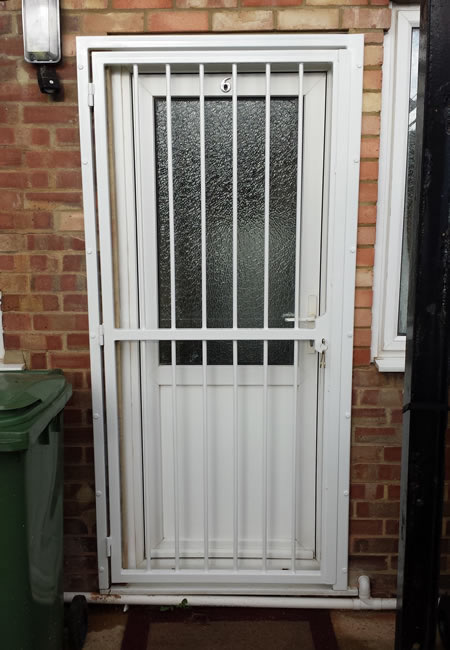

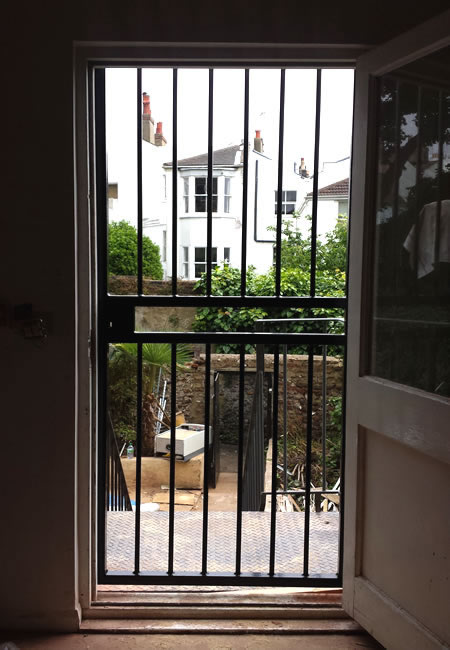

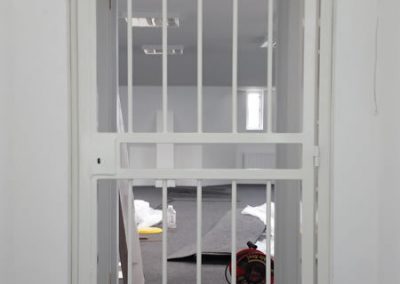

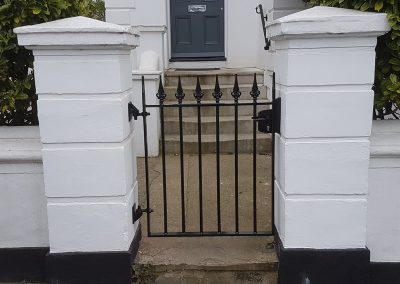

Hinged Bar Gate

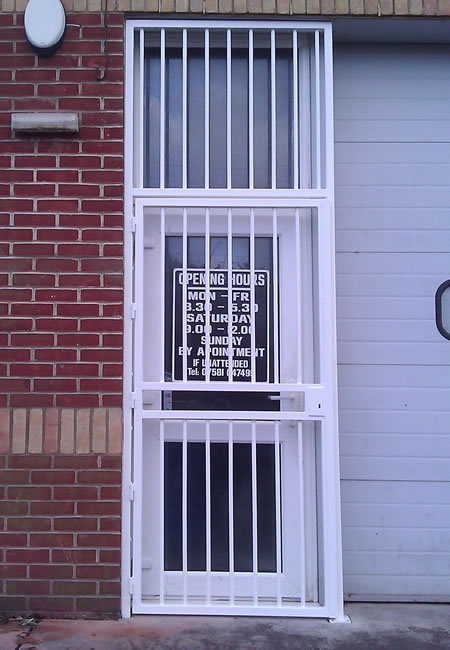

Hinged Bar Gate

Locking Options

There are many options available when it comes to securing our gates and most locking requirements can be accommodated, whether your requirements are to meet fire regulations, connect to an existing or new door entry / access control systems we can help, all are pre-fabricated into the gates for maximum security.

Fire Exit Devices, self closing latches, Chubb Deadlocks, Mechanical or battery operated digital codelocks, Magnetic locks and electric lock releases are only a few of the options.

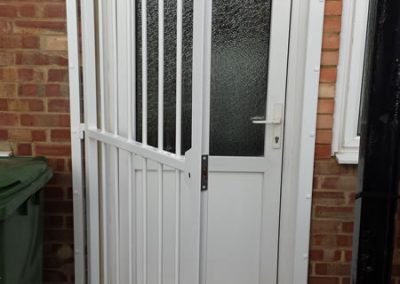

Hinged Bar Security Gate

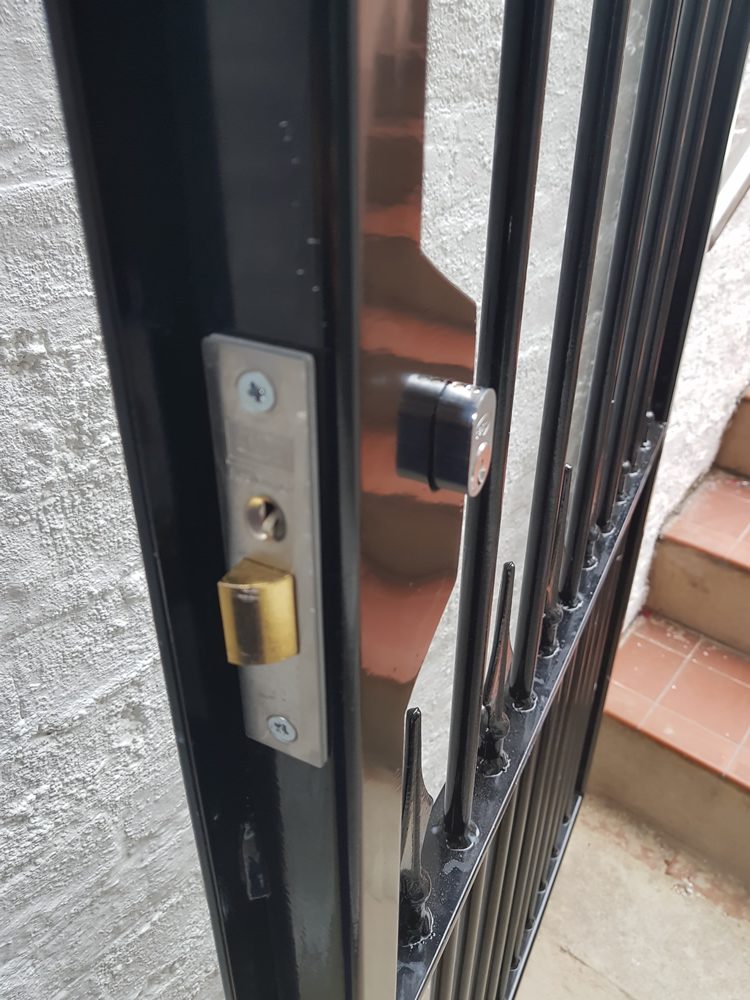

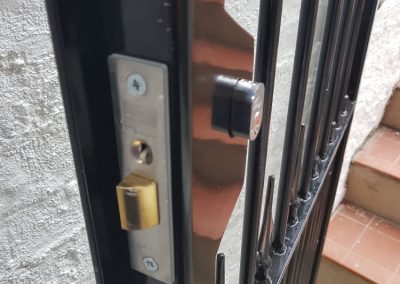

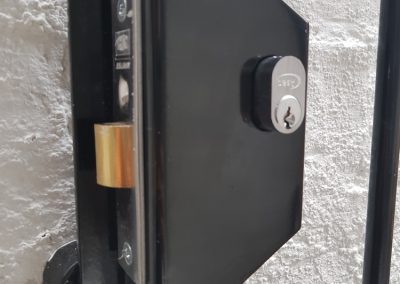

Self Closing Latch Option

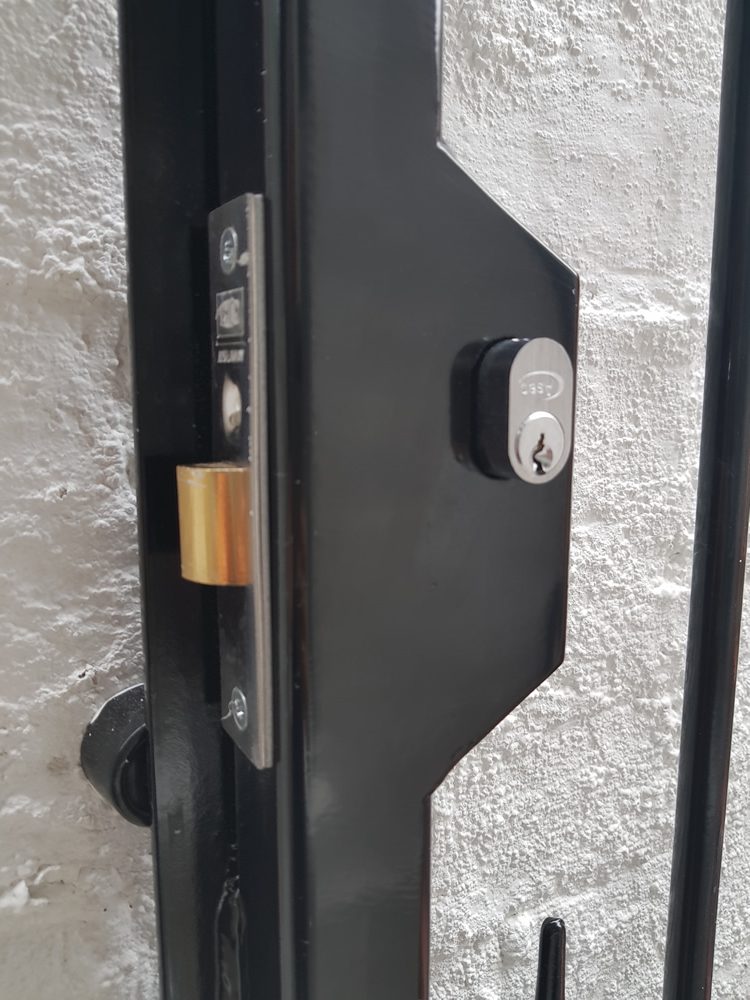

Hinged Bar Security Gate - Self Closing latch lock option
Self Closing Latch Lock Option

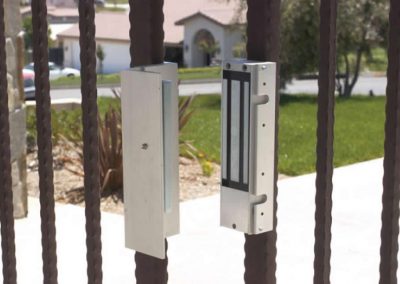

Hinged Bar Security Gate - Magnetic Locks
Magnetic Locks

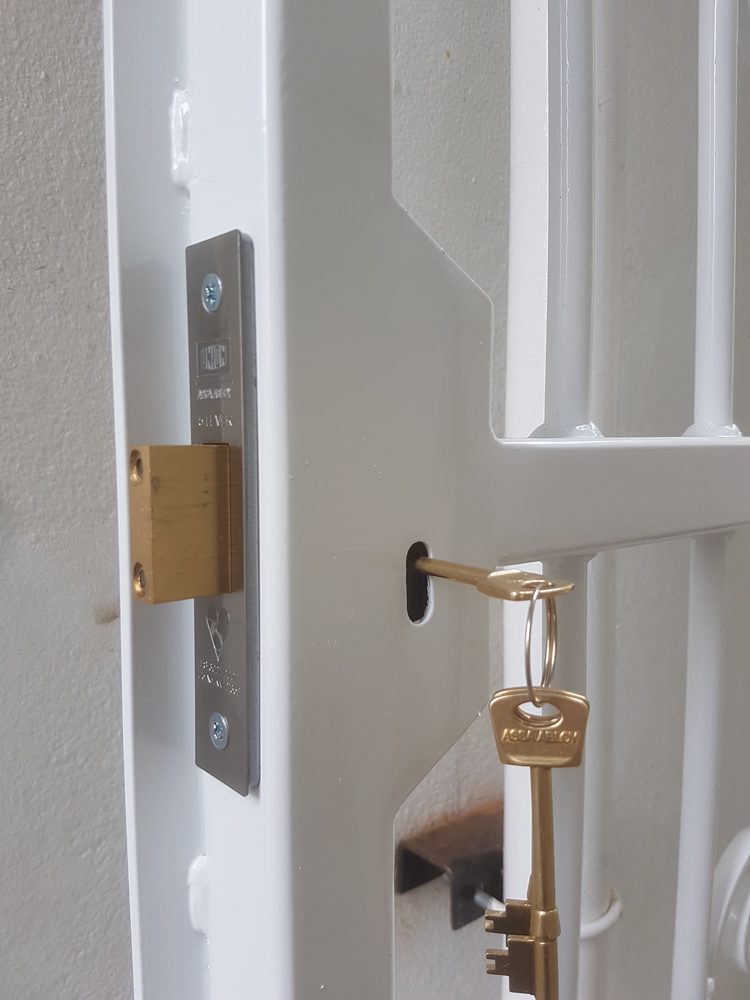

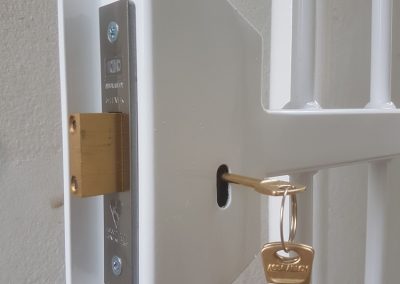

Hinged Bar Security Gate - Insurance Rated 5 Lever Deadlock
Insurance Rated 5 Lever Deadlock

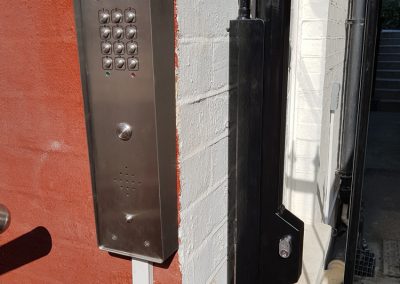

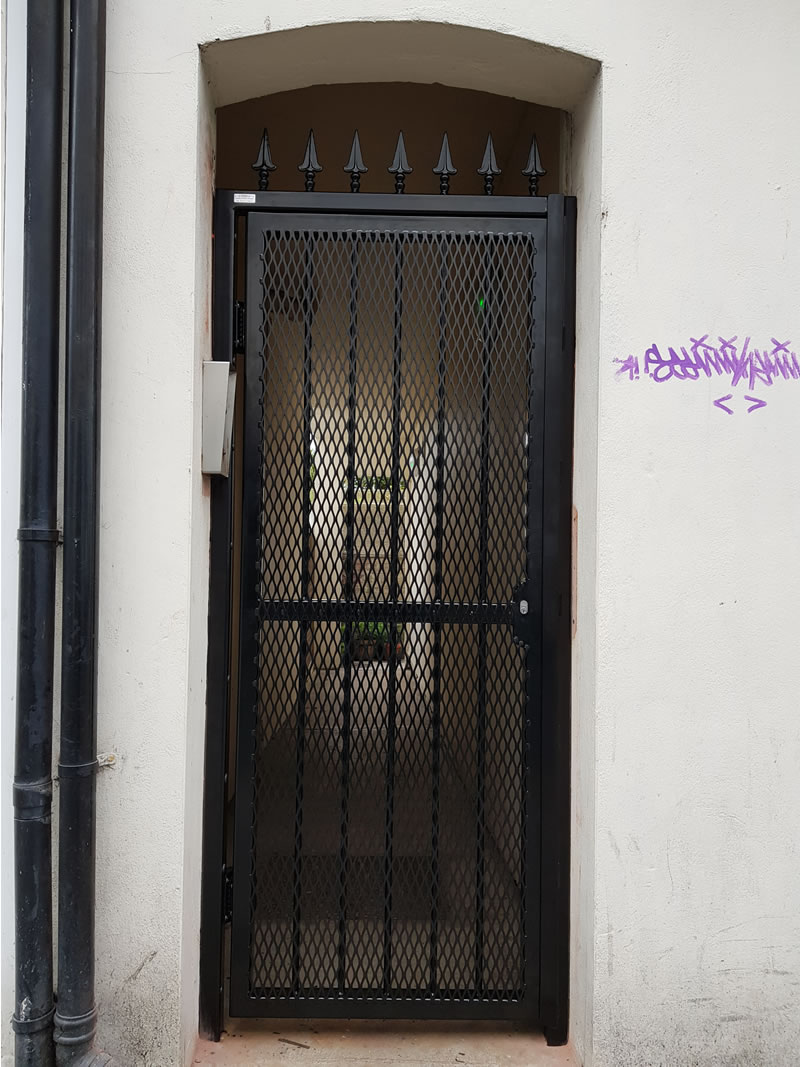

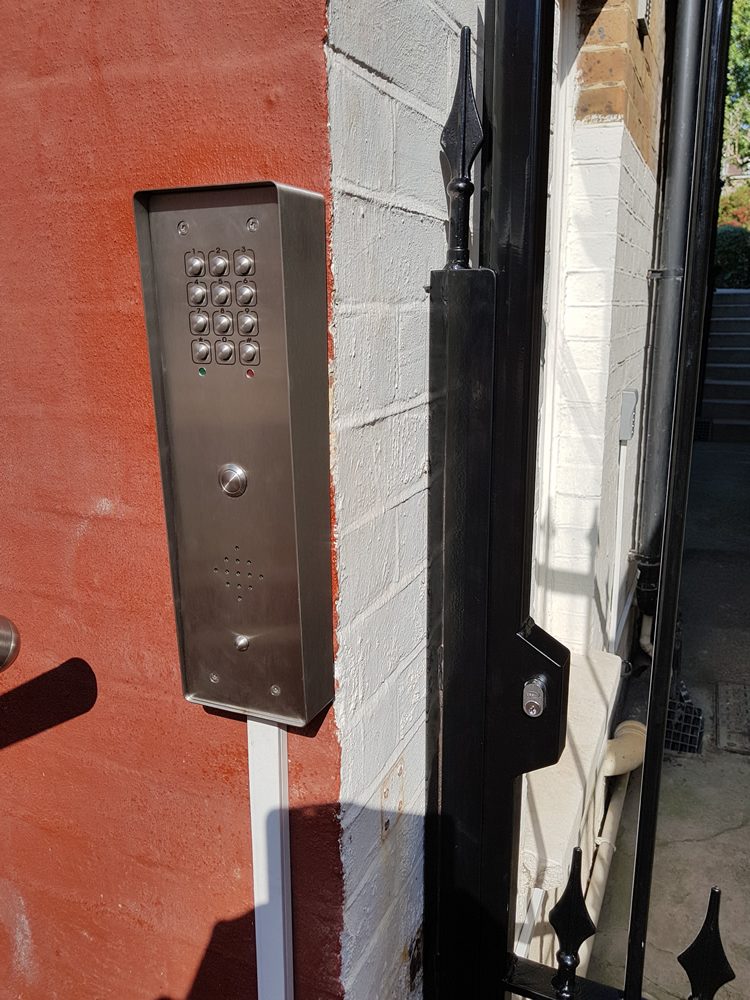

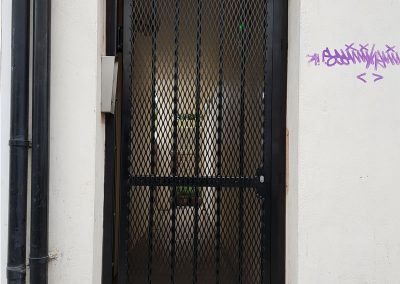

Hinged Bar Security Gate - Gate with Door Entry Phone Systems

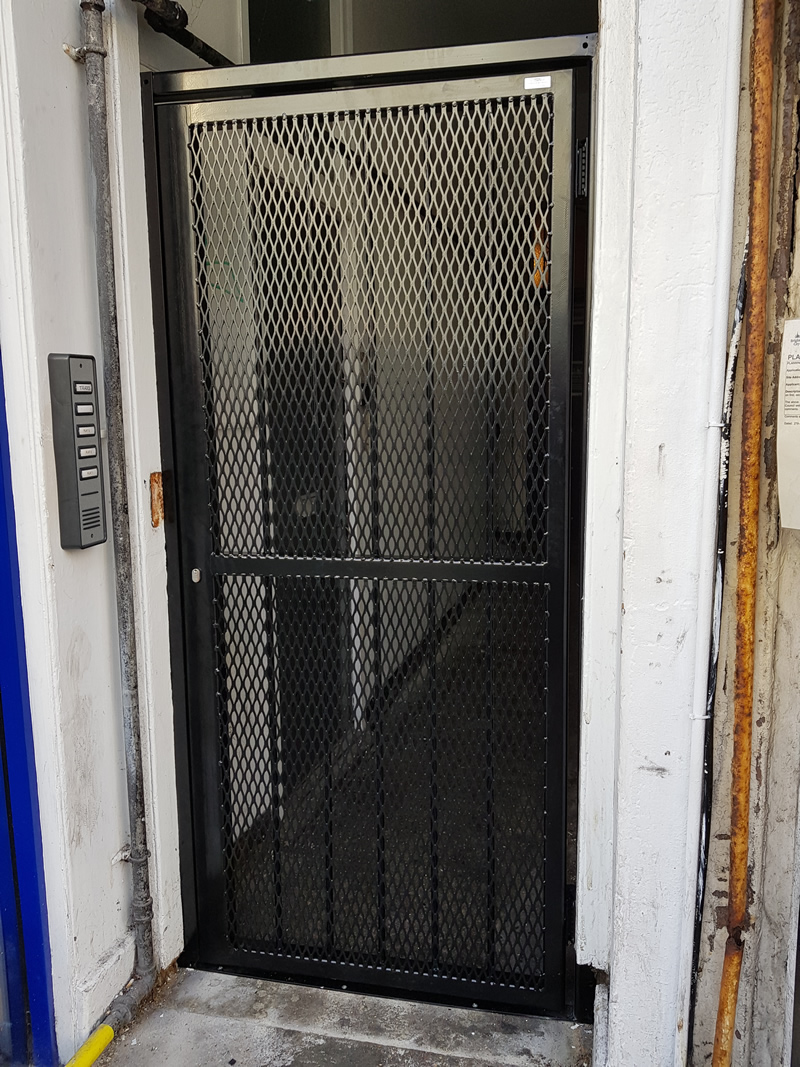

Gate with Door Entry Phone Systems

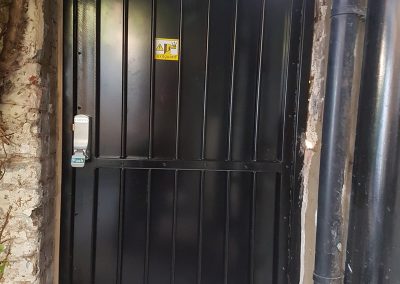

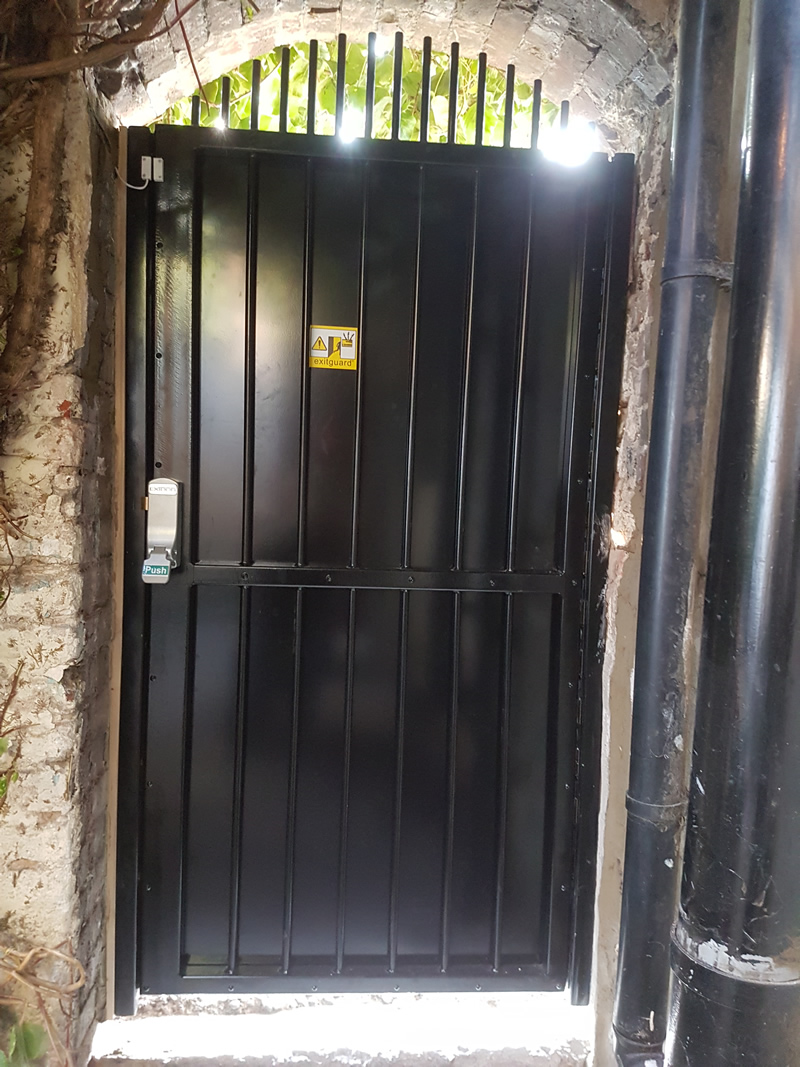

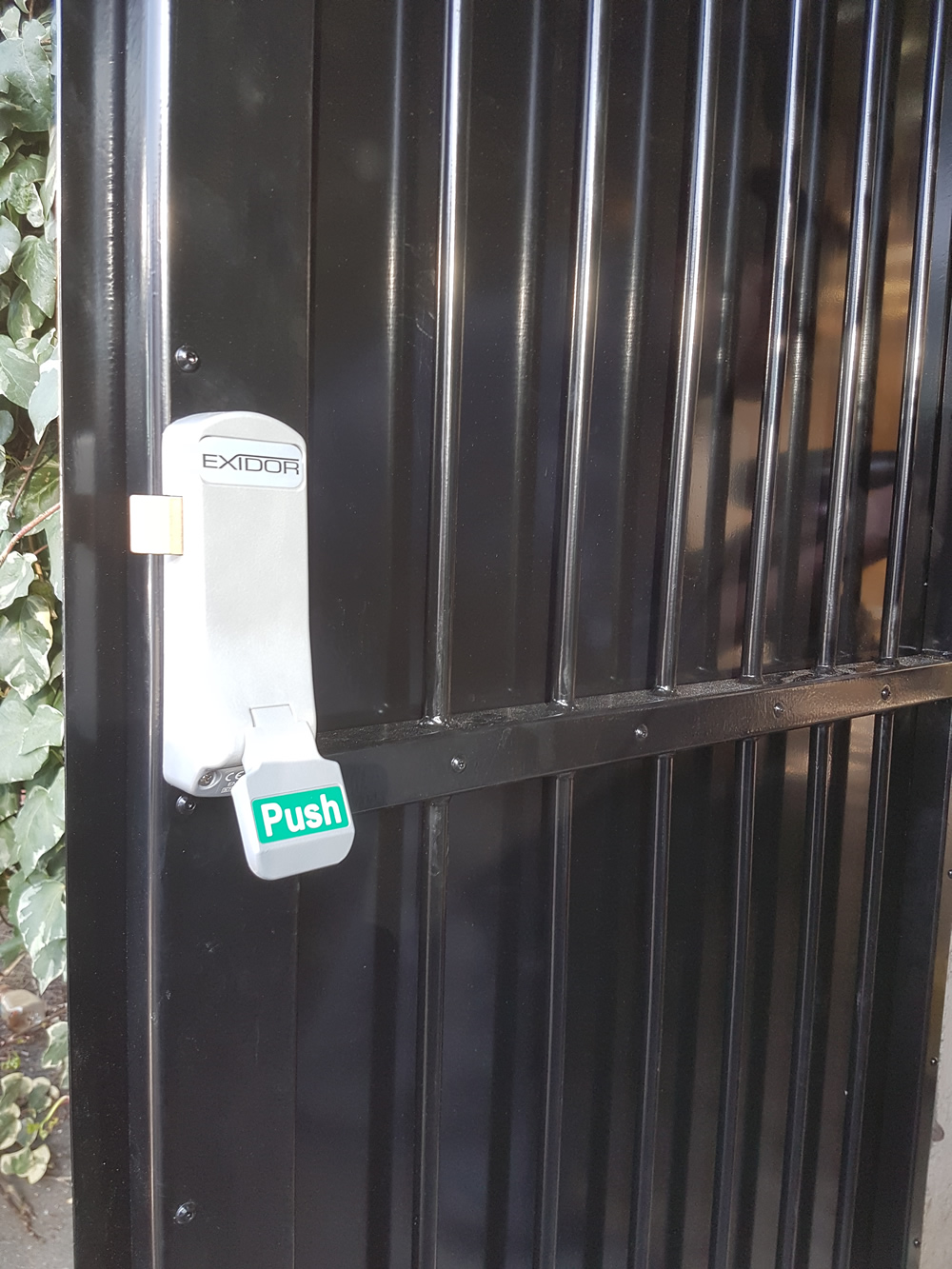

Hinged Bar Security Gate - Fire Exit Devices

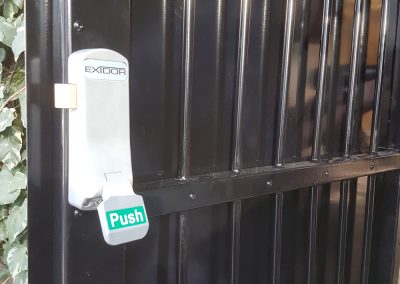

Fire Exit Devices

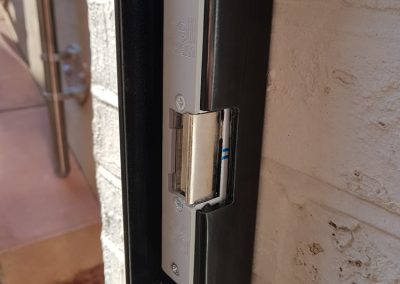

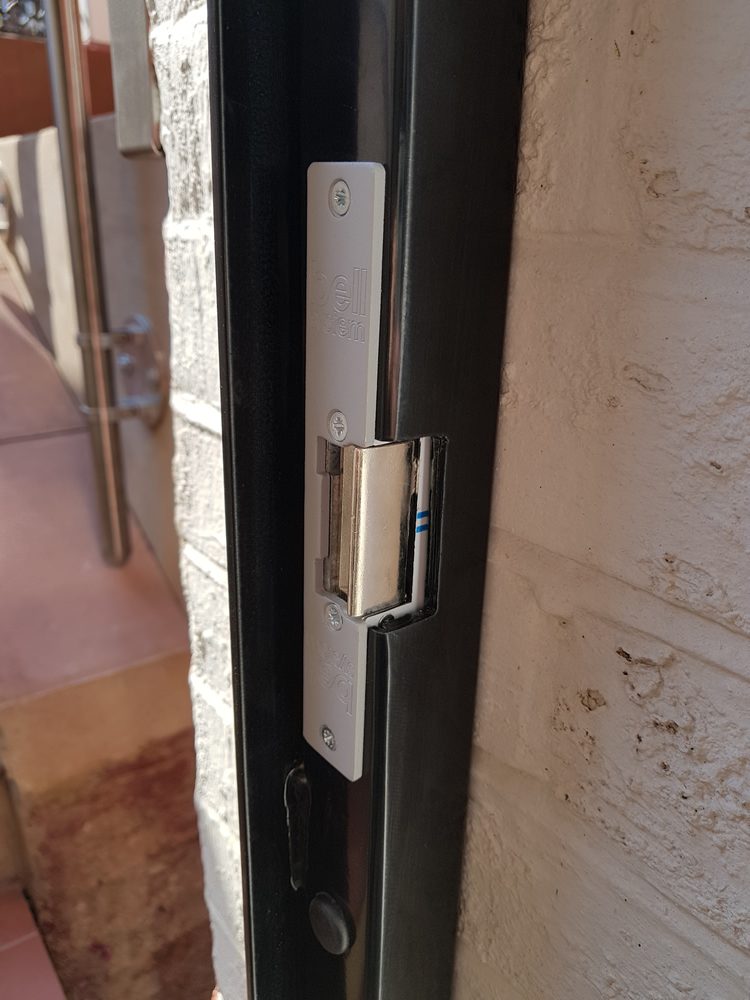

Hinged Bar Security Gate - Electric Locking Options
Electric Locking Options

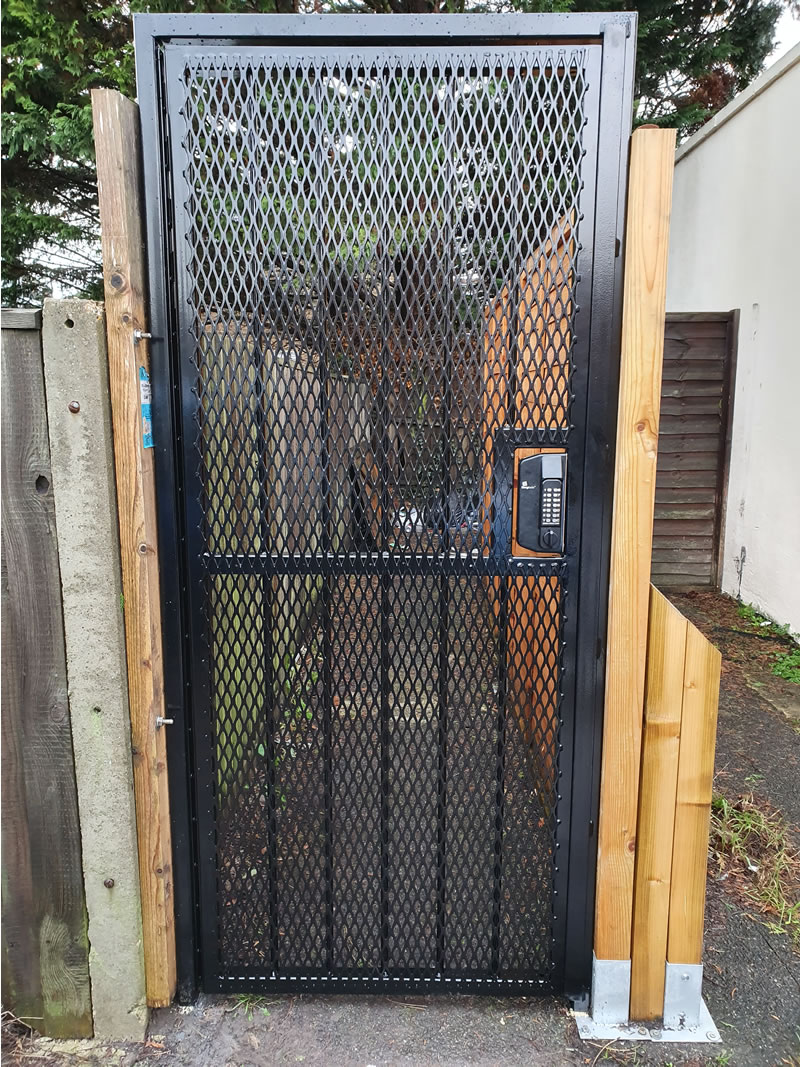

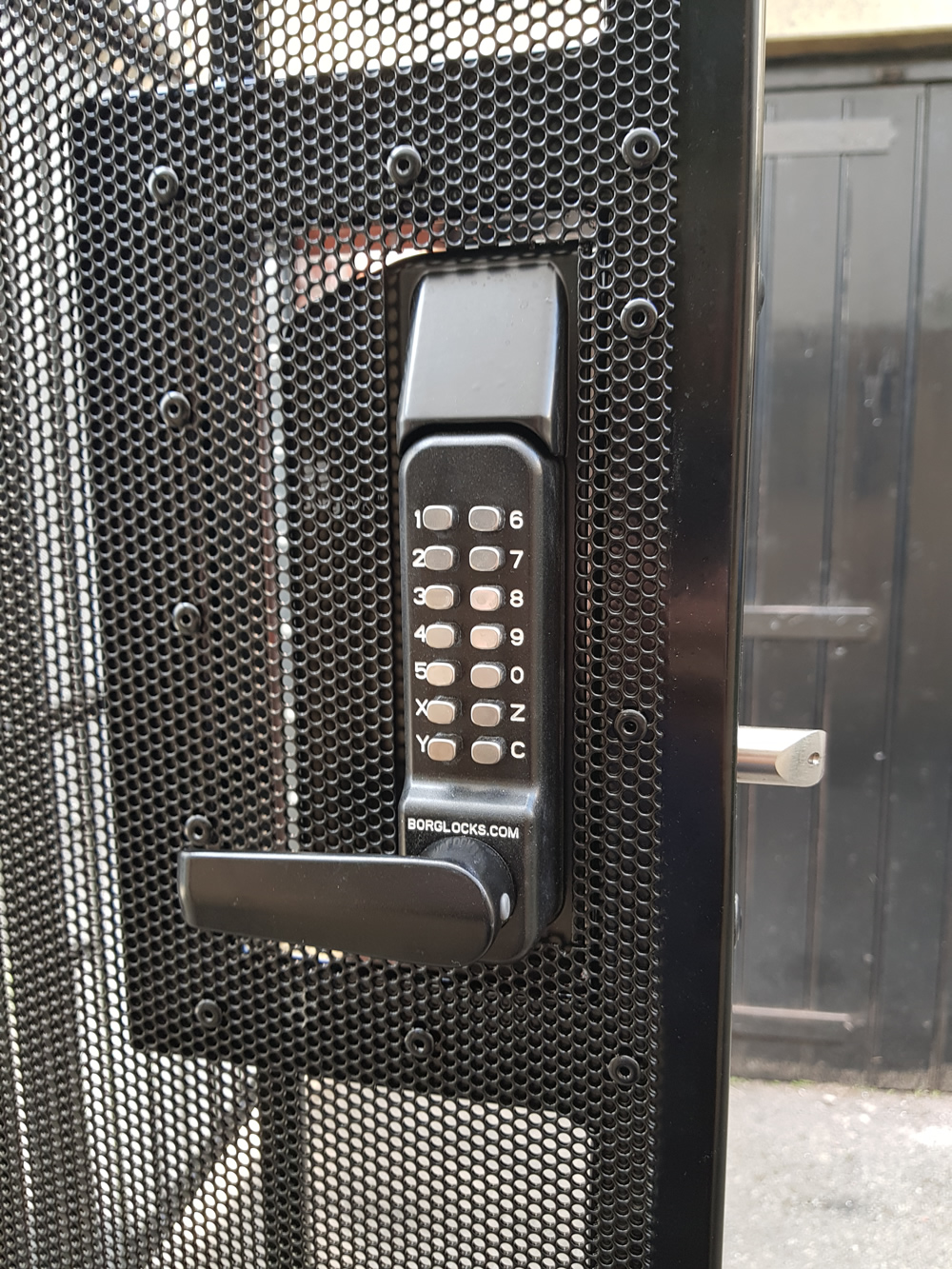

Hinged Bar Security Gate - Digital Codelock Options

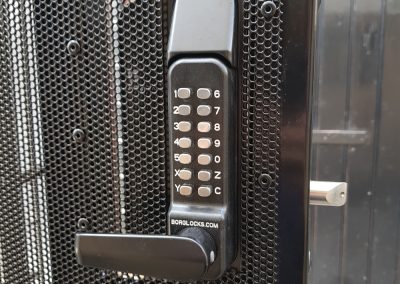

Digital Codelock Options

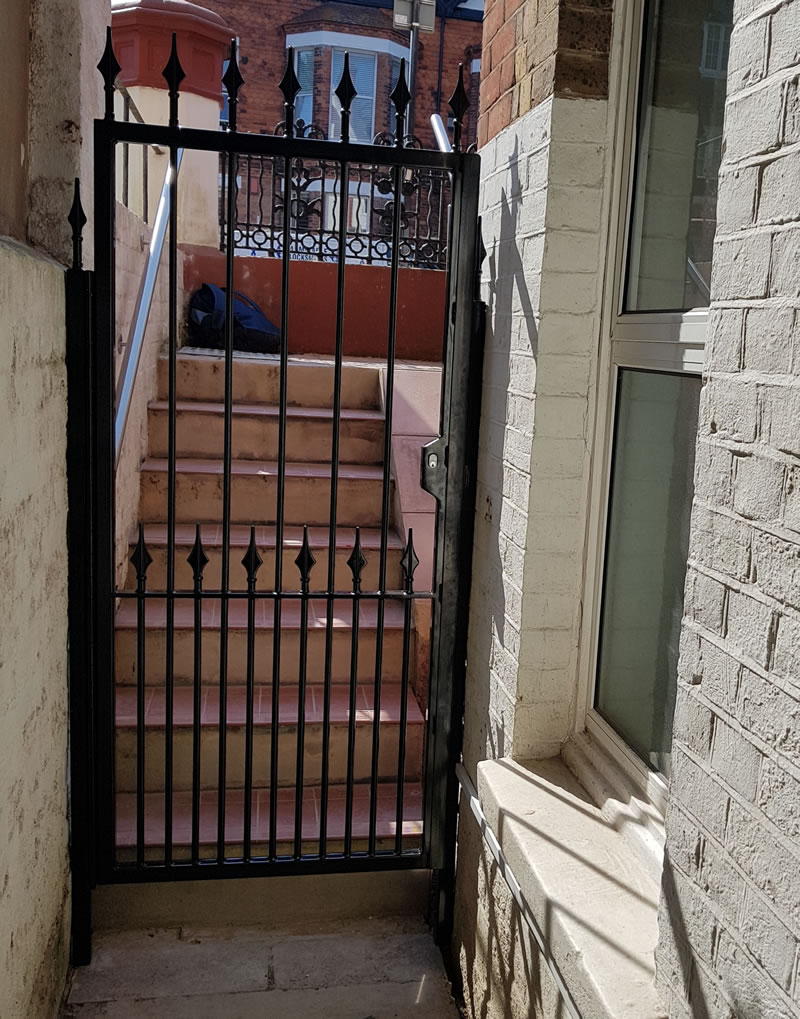

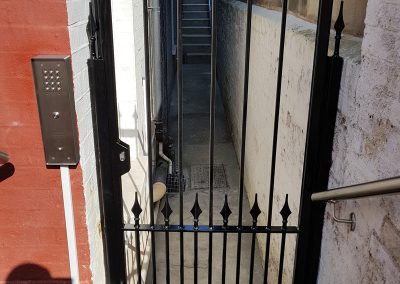

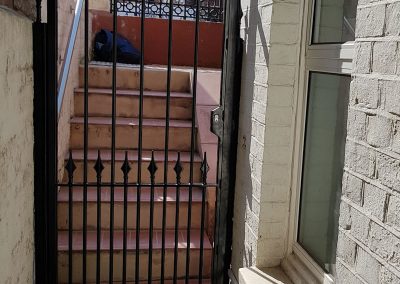

Hinged Bar Security Gate - Access Control Options

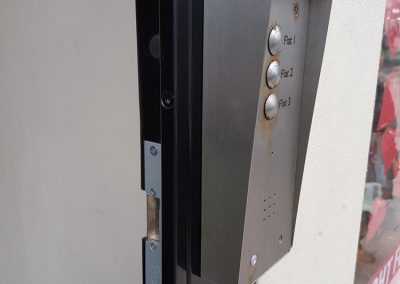

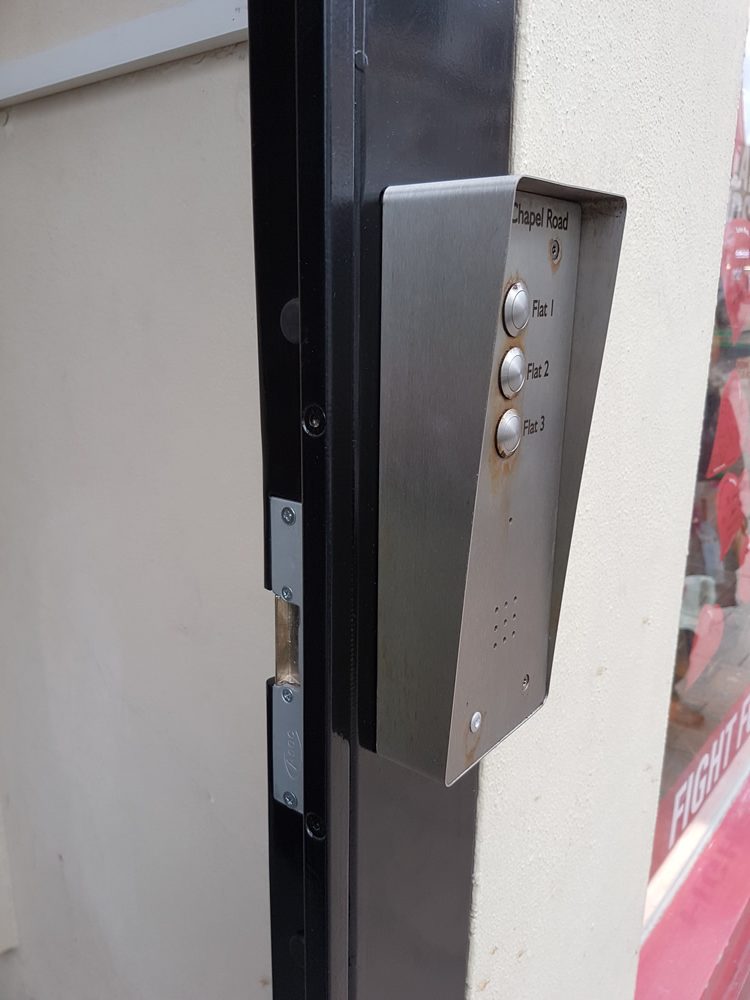

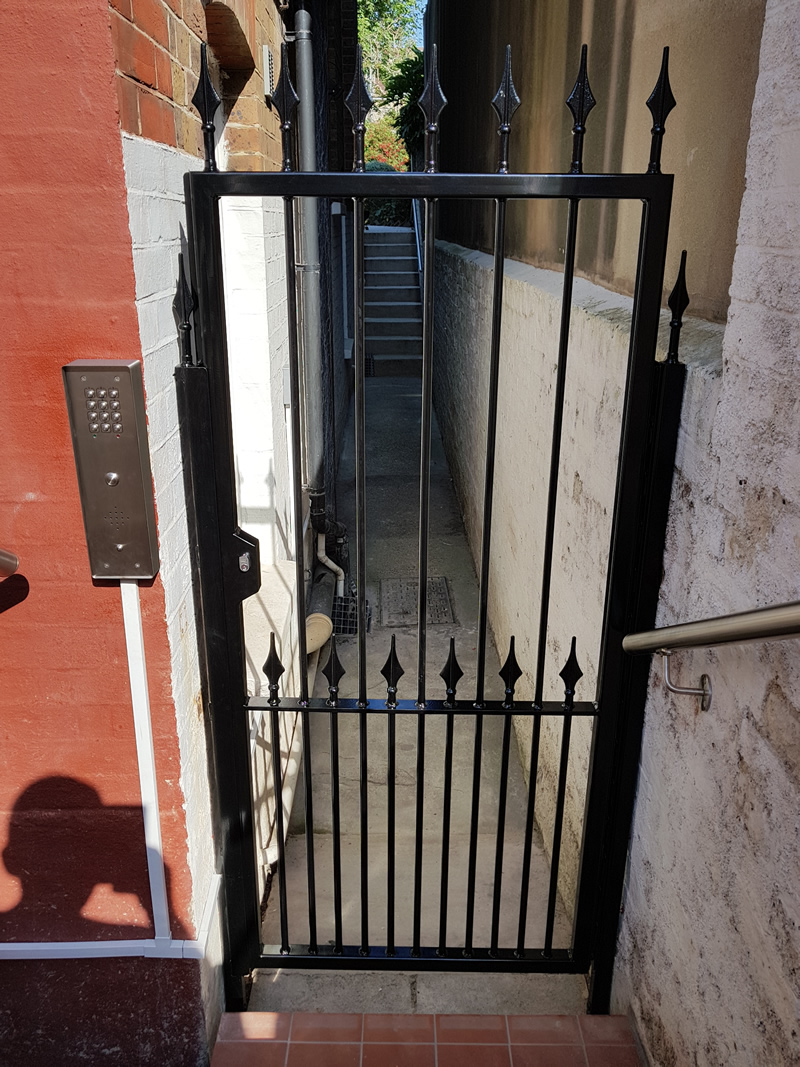

Access Control Options

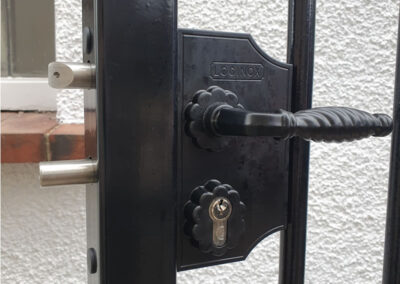

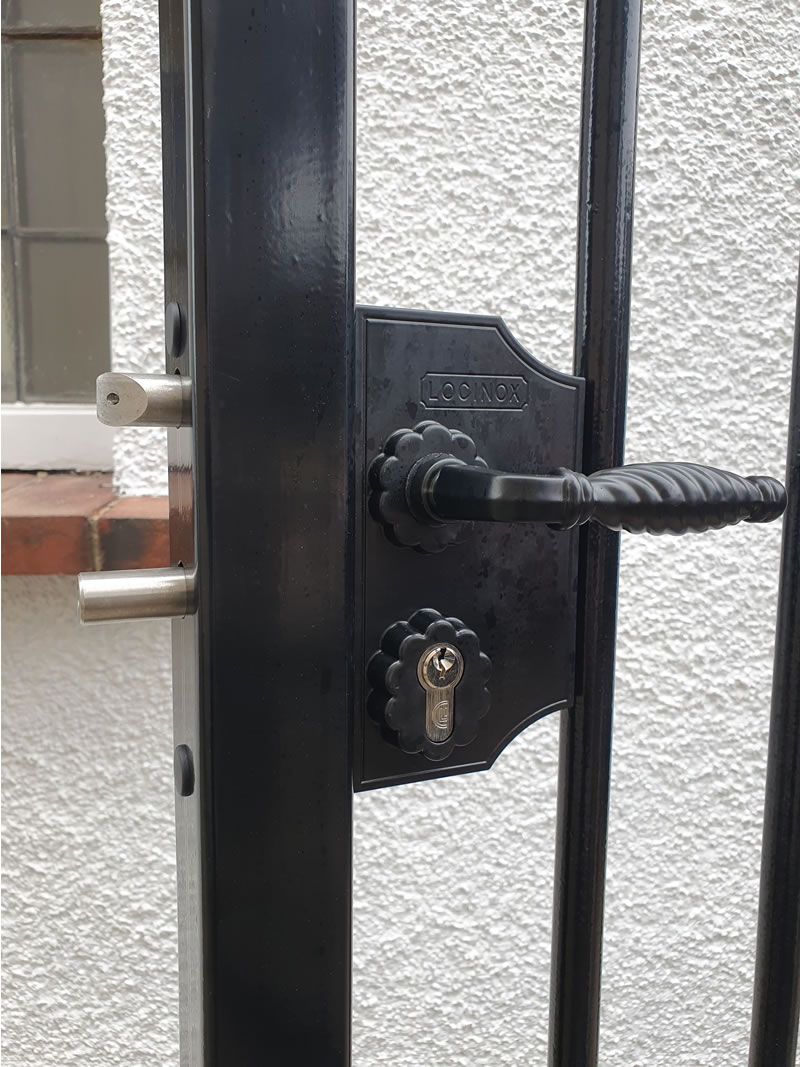

Locinox
Locinox

Coverings

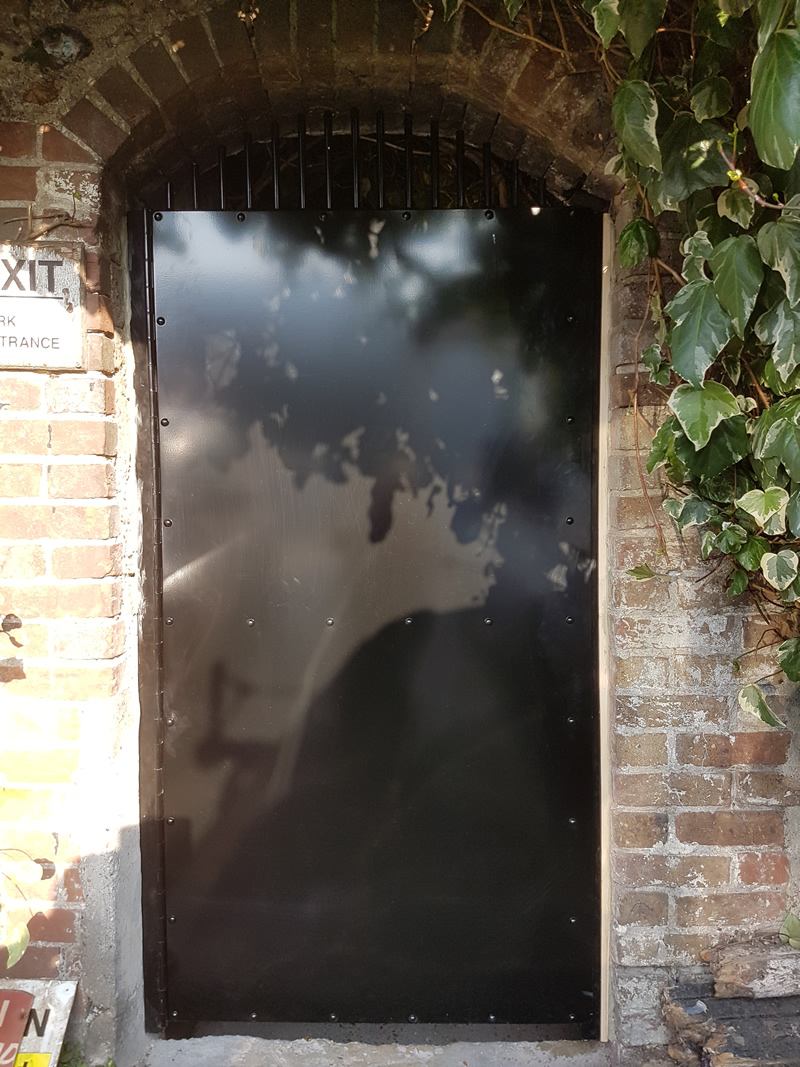

There are many different styles of covering available which can be added to our hinged bar security gates, fully closed steel sheet, perforated, diamond mesh and square mesh are the most commonly used.

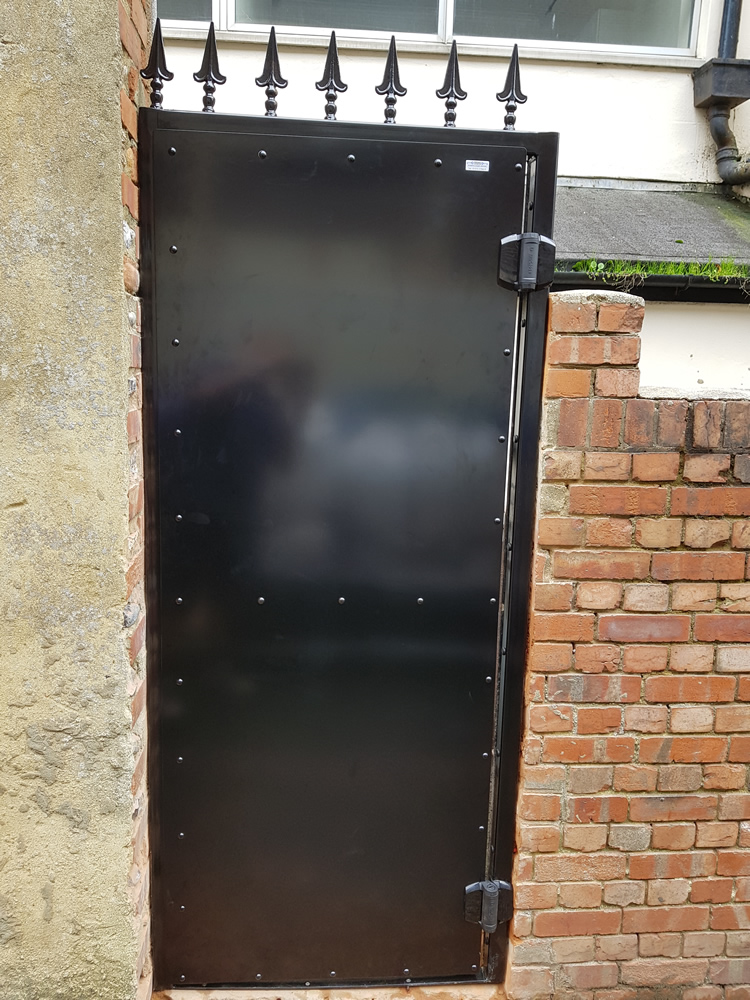

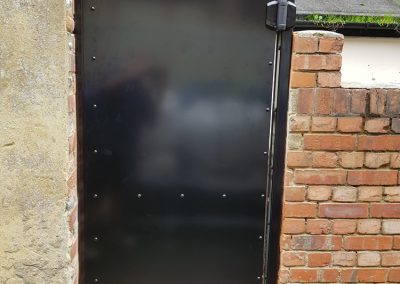

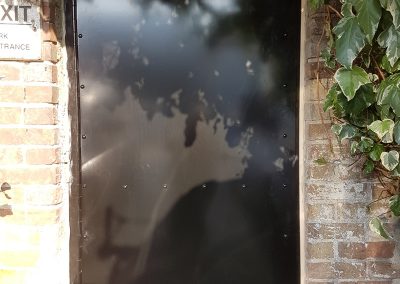

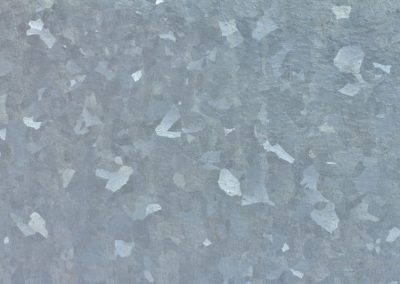

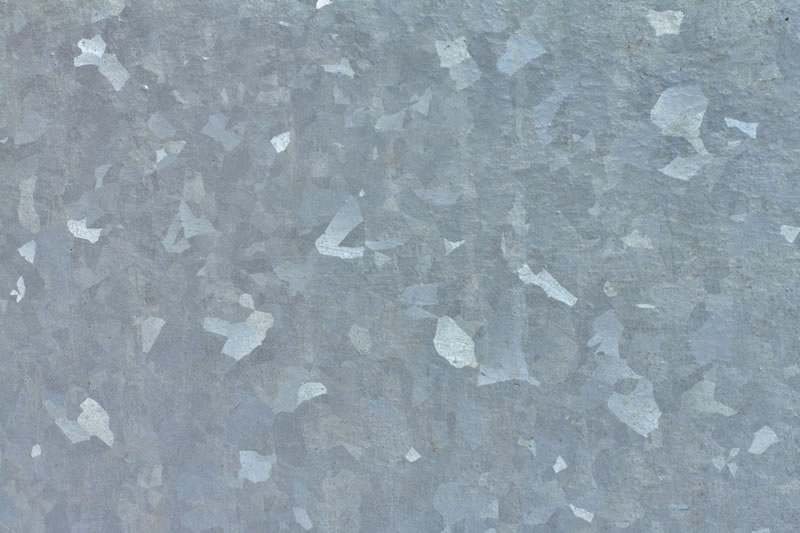

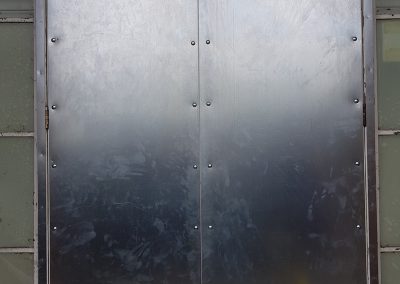

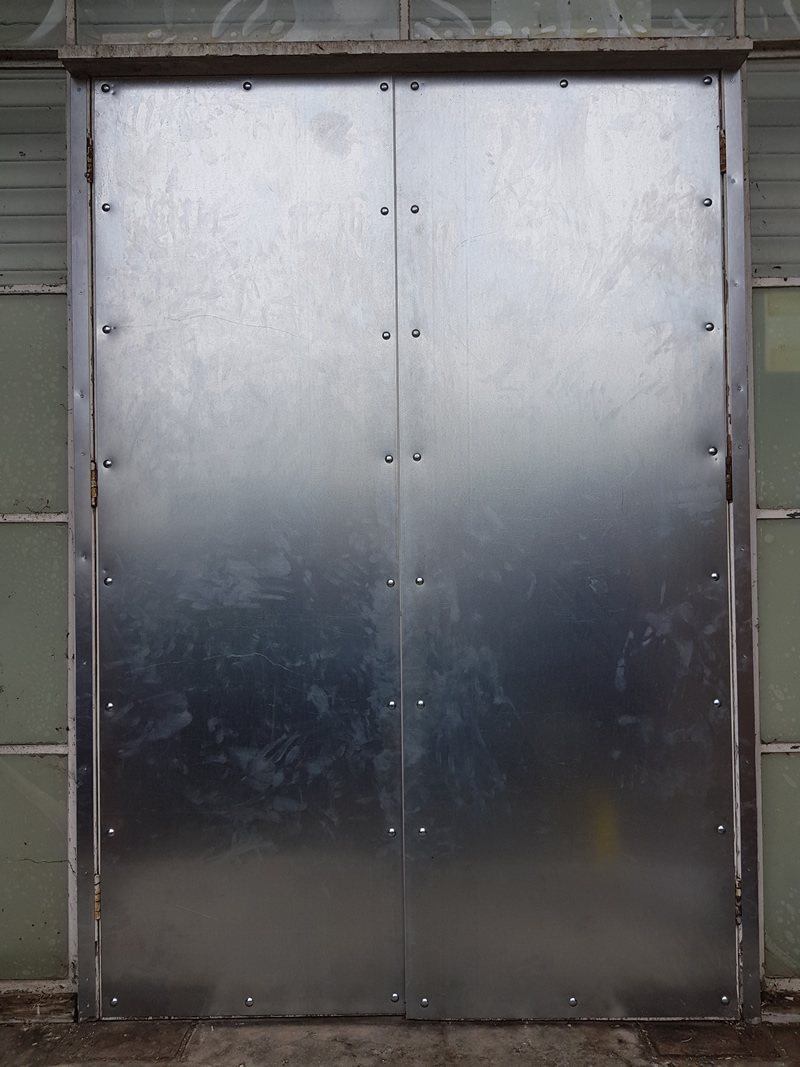

Galvanized Sheet

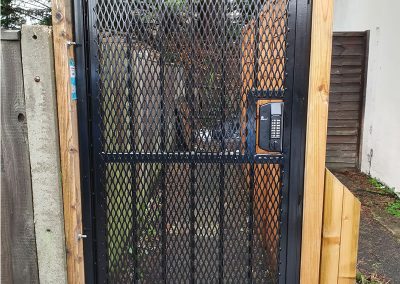

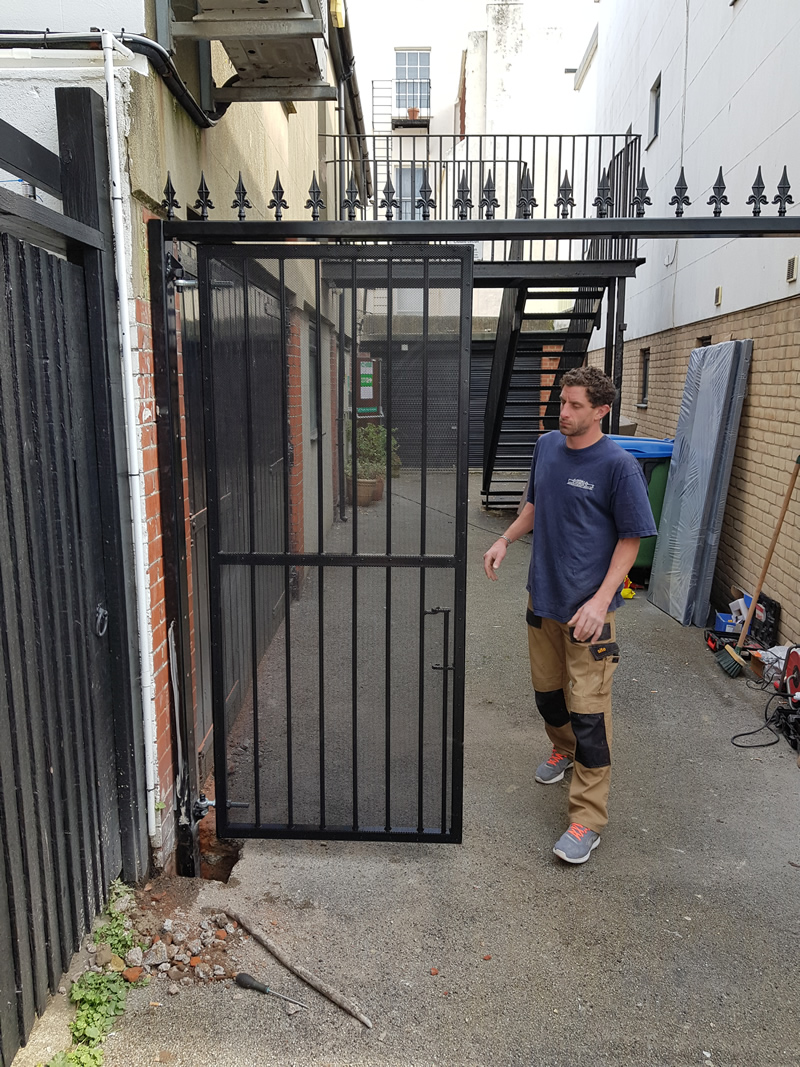

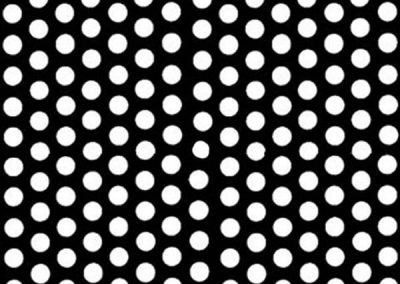

Perforated Mesh

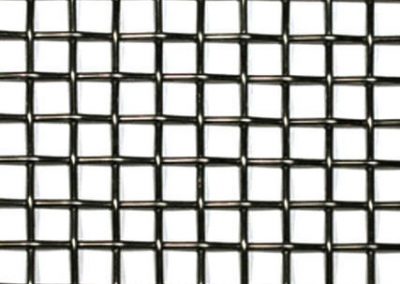

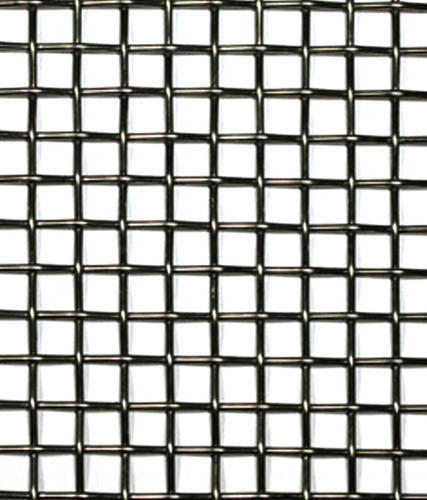

Square Mesh

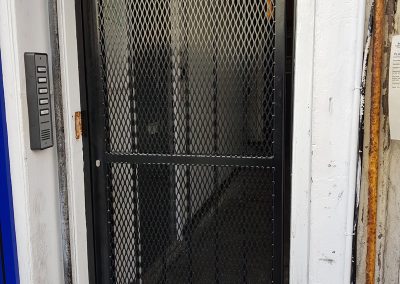

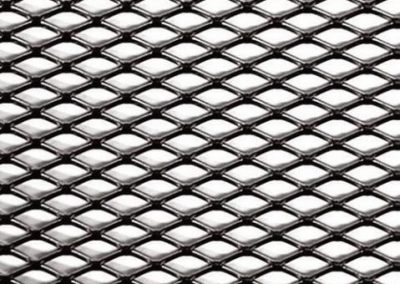

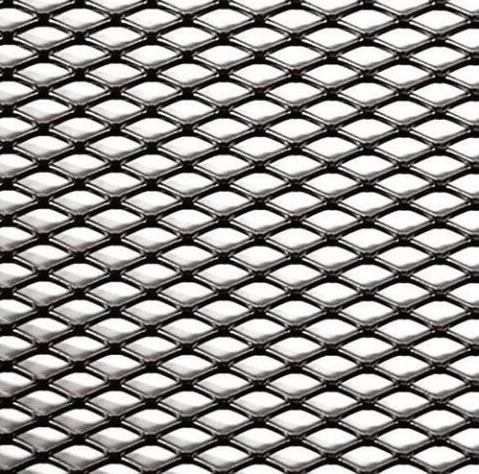

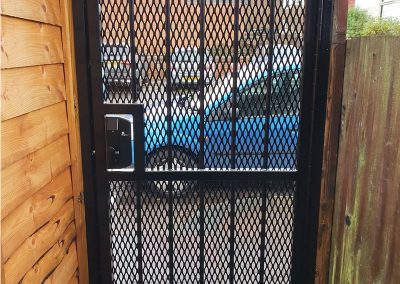

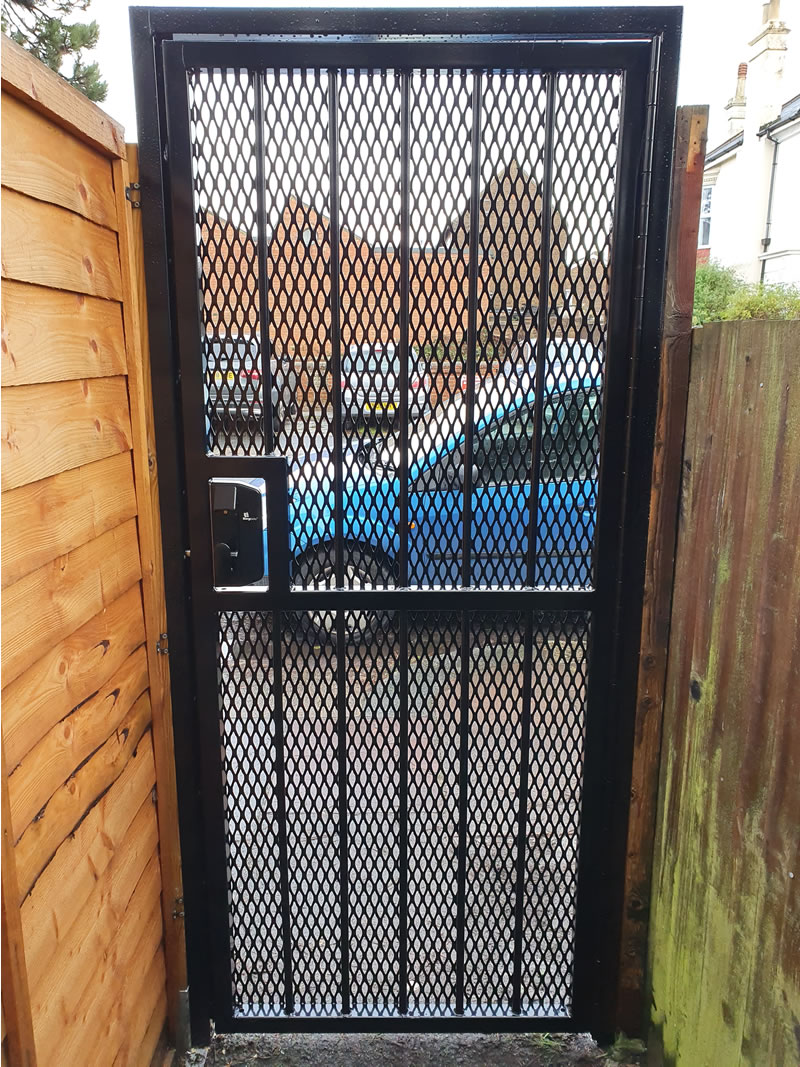

Diamond Mesh

Hinged Security Gates services for Brighton & Hove, Worthing, Horsham, Haywards Heath, Burgess Hill, Lewes, Peacehaven, & Newhaven & across Sussex.

 These Hinged Security Gates services for Brighton & Hove, Worthing, Horsham, Haywards Heath, Burgess Hill, Lewes, Peacehaven, & Newhaven & across Sussex.
